A wooden beam is fabricated from one 50 times 300mm and two 50 times 250mm lumber boards to form the double-tee cross section shown in Figure. The beam flange is fastened to the stem with nails. Each nail can safely transmit a force of 760 N in direct shear. The allowable shear stress of the wood is 460 kPa . a) If the nails are uniformly spaced at

Question

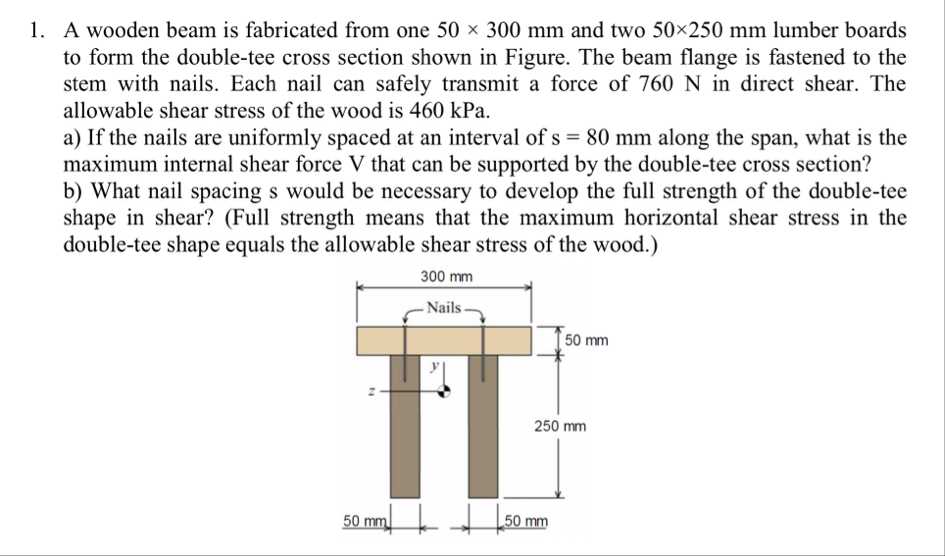

A wooden beam is fabricated from one 50 times 300mm and two 50 times 250mm lumber boards to form the double-tee cross section shown in Figure. The beam flange is fastened to the stem with nails. Each nail can safely transmit a force of 760 N in direct shear. The allowable shear stress of the wood is 460 kPa . a) If the nails are uniformly spaced at an interval of s=80mm along the span, what is the maximum internal shear force V that can be supported by the double-tee cross section? b) What nail spacing s would be necessary to develop the full strength of the double-tee shape in shear? (Full strength means that the maximum horizontal shear stress in the double-tee shape equals the allowable shear stress of the wood.)

Accepted Answer

Expert Answer to - A wooden beam is fabricated from one 50 times 300mm and two 50 times 250mm lumber boards to form the

Answer

Solution for - A wooden beam is fabricated from one 50 times 300mm and two 50 times 250mm lumber boards to form the

Answer

This an additional answer to - A wooden beam is fabricated from one 50 times 300mm and two 50 times 250mm lumber boards to form the

(Solved): A wooden beam is fabricated from one 50\times 300mm and two 50\times 250mm lumber boards to form the ...

View Expert Answer

Expert Answer

Buy This Answer $5
