(Solved): P1.7 Consider the washing machine mechanism shown in Figure 1.12. To help your understanding, you sh ...

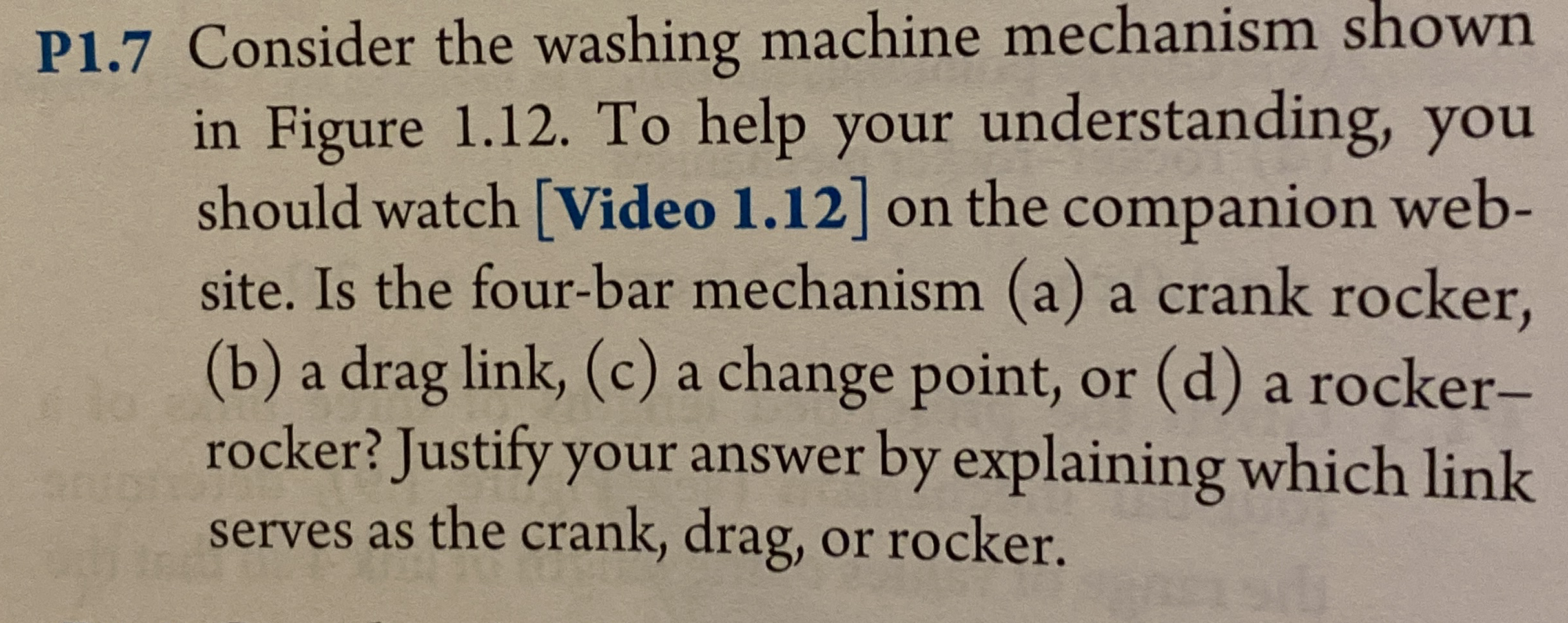

P1.7 Consider the washing machine mechanism shown in Figure 1.12. To help your understanding, you should watch [Video 1.12] on the companion website. Is the four-bar mechanism (a) a crank rocker, (b) a drag link, (c) a change point, or (d) a rockerrocker? Justify your answer by explaining which link serves as the crank, drag, or rocker.
