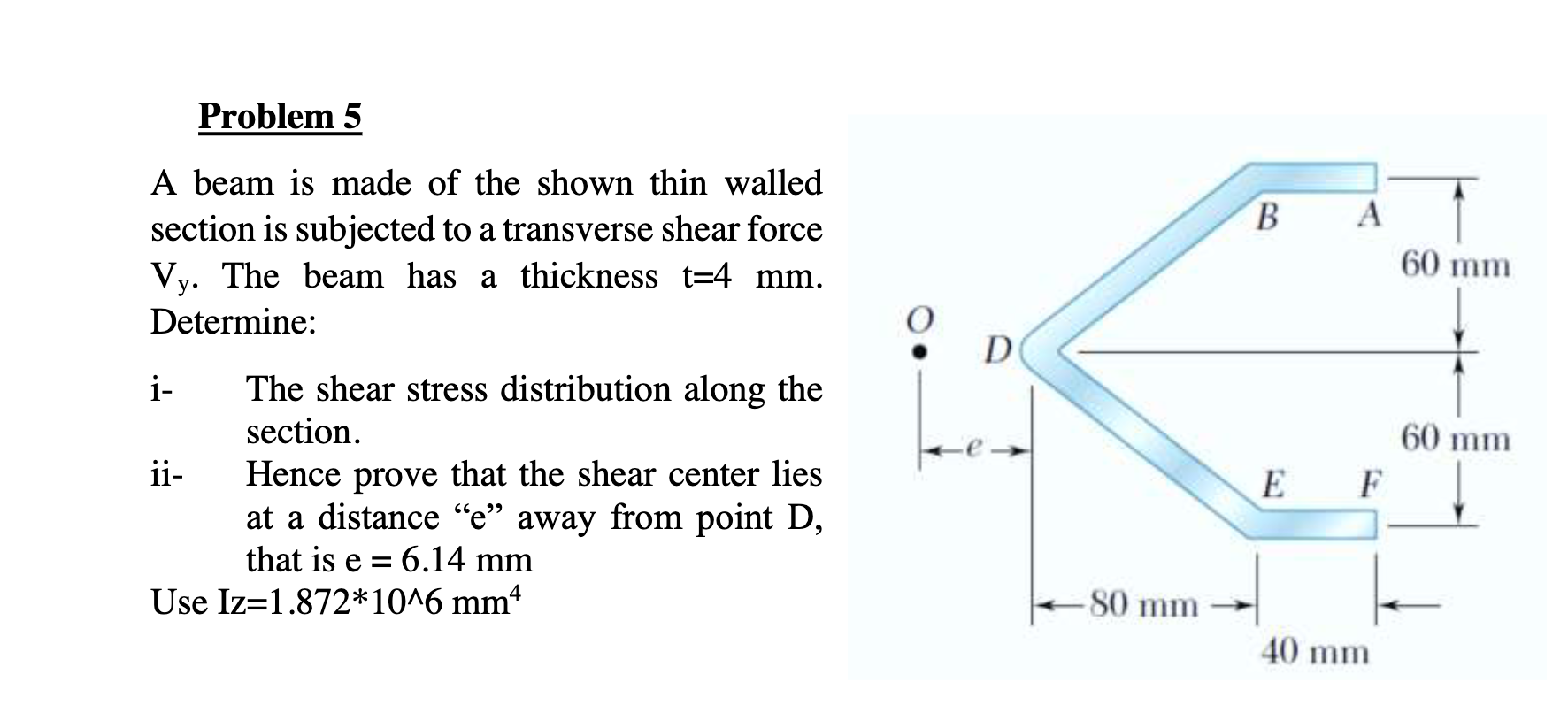

Problem 5 A beam is made of the shown thin walled section is subjected to a transverse shear force V_(y). The beam has a thickness t=4mm. Determine: i- The shear stress distribution along the section. ii- Hence prove that the shear center lies at a distance " e " away from point D , that is e=6.14mm Use Iz =1.872*10^(6)mm^(4)

Question

Problem 5 A beam is made of the shown thin walled section is subjected to a transverse shear force V_(y). The beam has a thickness t=4mm. Determine: i- The shear stress distribution along the section. ii- Hence prove that the shear center lies at a distance &#34; e &#34; away from point D , that is e=6.14mm Use Iz =1.872*10^(6)mm^(4)
