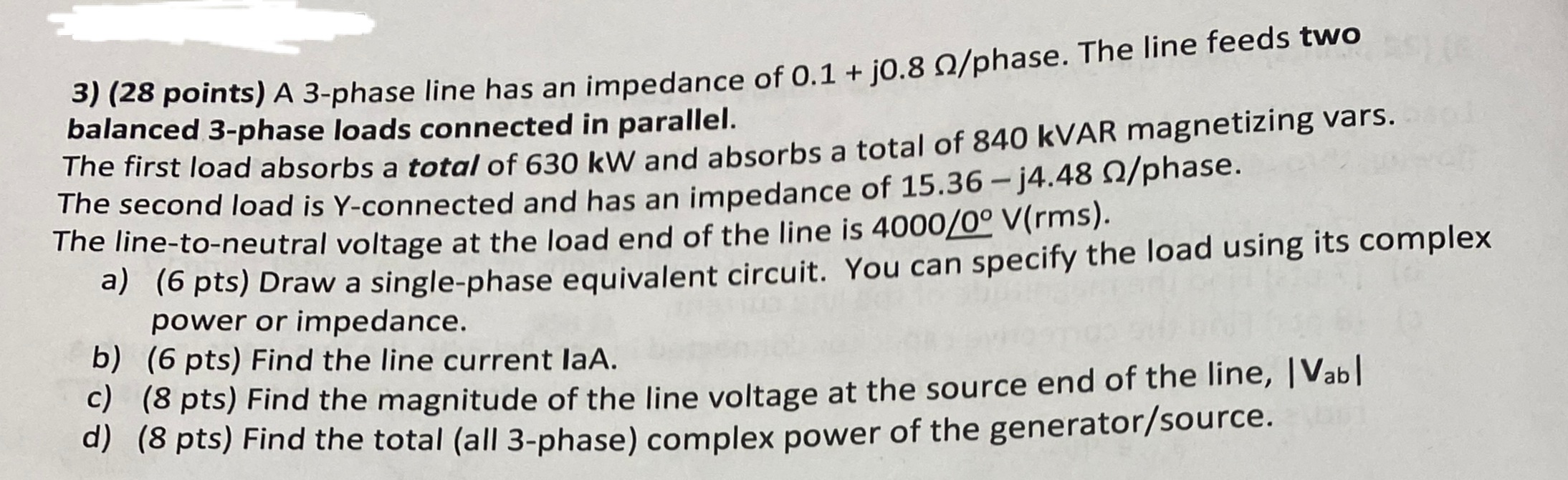

(Solved): 0.1+j0.8(\Omega )/() phase. The line feeds two balanced 3-phase loads connected in parallel. The fir ...
0.1+j0.8(\Omega )/() phase. The line feeds two
balanced 3-phase loads connected in parallel.
The first load absorbs a total of 630 kW and absorbs a total of 840 kVAR magnetizing vars.
The second load is Y-connected and has an impedance of 15.36-j4.48(\Omega )/(p)h ase.
The line-to-neutral voltage at the load end of the line is (4000)/(0)\deg V(rms).
a|V_(ab)|
d(8pts) Find the total (all 3-phase) complex power of the generato(r)/(s)ource.
