(Solved): -1.5 m 3 kN/m 2.1 m 8 kN Draw the shear-bending moment diagram of the beam shown. If the beam is m ...

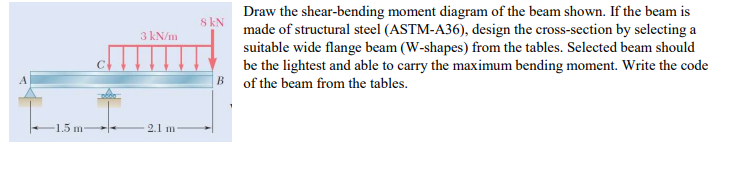

-1.5 m 3 kN/m 2.1 m 8 kN Draw the shear-bending moment diagram of the beam shown. If the beam is made of structural steel (ASTM-A36), design the cross-section by selecting a suitable wide flange beam (W-shapes) from the tables. Selected beam should be the lightest and able to carry the maximum bending moment. Write the code of the beam from the tables. B
