1. Consider the structure shown in Figure 1(a). The moment diagram produced by the factored loads is given in Figure 1(b). Lateral bracing is provided at locations A, C, D, and E. Neglect the self-weight of the beam. (A) Assuming the unbraced Segment AC governs, select an economical W14 section of A992 steel. (B) Check if the trial section sele

Question

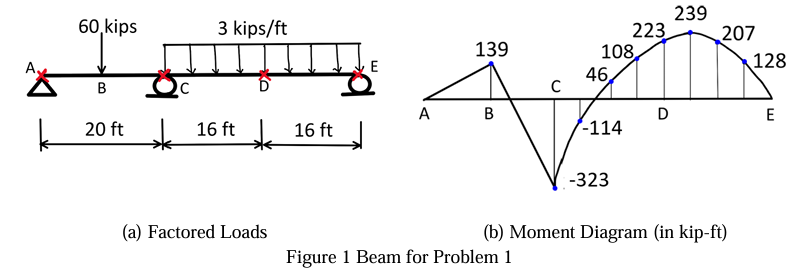

1. Consider the structure shown in Figure 1(a). The moment diagram produced by the factored loads is given in Figure 1(b). Lateral bracing is provided at locations A, C, D, and E. Neglect the self-weight of the beam.   (A) Assuming the unbraced Segment AC governs, select an economical W14 section of A992 steel.   (B) Check if the trial section selected in Part (A) is also satisfactory for the unbraced Segments CD and DE. If it is not satisfactory, select a new economical W14 section that is satisfactory for all three segments.
