(Solved): 1.     Identify the pattern/path of each highlighted part of the process ...

1.     Identify the pattern/path of each highlighted part of the process model.

        Start from where the trigger is.

2.     Determine the equation of each pattern.

3.     Formulate the equation for each pattern according to the labels/variables

       assigned.

4.     Substitute the values assigned to each variable in each derived equation.

5.     Calculate for each Average Cycle Time (CT) in the derived equation.

6.     Calculate for the overall Average Cycle Time (CT).

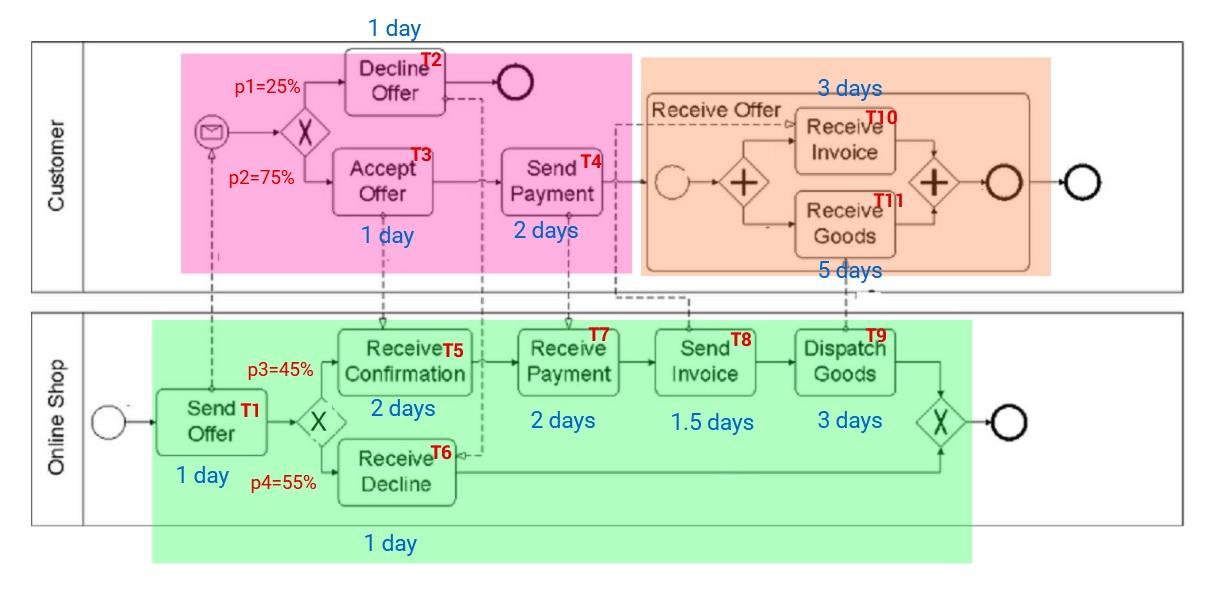

1 day Decling2 Offer p1=25% 3 days Receive Offer X Received Invoice Customer p2=75% T3 Accept Offer Send T4 + + O Payment 2 days 1 day Receive Goods 5 days Receive Send T8 Dispatch p3=45% ReceiveT5 Confirmation 2 days Payment Invoice Goods Online Shop Send T1 Offer x 2 days 1.5 days 3 days 1 day p4=55% Receive Decline 1 day Question/Requirement: Calculate for the Average Cycle Time (CT). Instruction: To perform the operations to calculate for the Average Cycle Time of the given process model, the steps to follow are:
