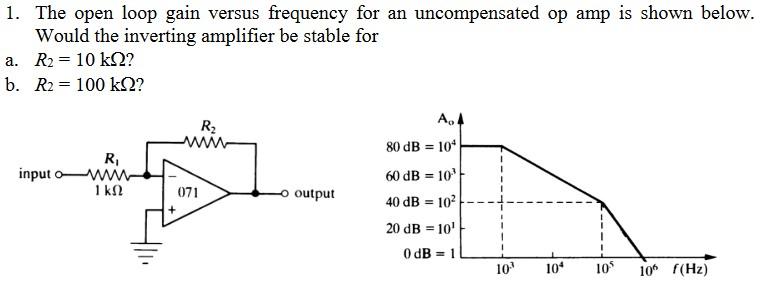

1. The open loop gain versus frequency for an uncompensated op amp is shown below. Would the inverting amplifier be stable for a. ( R_{2}=10 mathrm{k} Omega ) ? b. ( R_{2}=100 mathrm{k} Omega ) ?

Question

1. The open loop gain versus frequency for an uncompensated op amp is shown below. Would the inverting amplifier be stable for a.  ( R_{2}=10  mathrm{k}  Omega  ) ? b.  ( R_{2}=100  mathrm{k}  Omega  ) ?
