(Solved): 1. Use Fourier transform to find the spectrum of the periodic rectangular pulse voltage ...

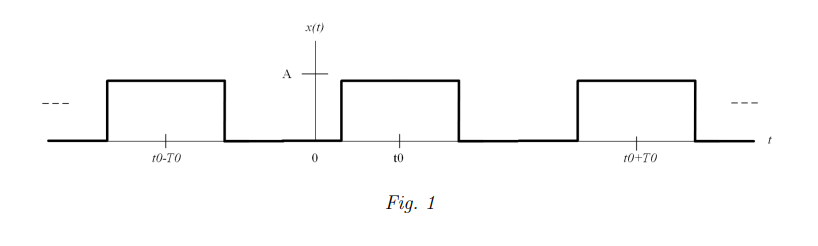

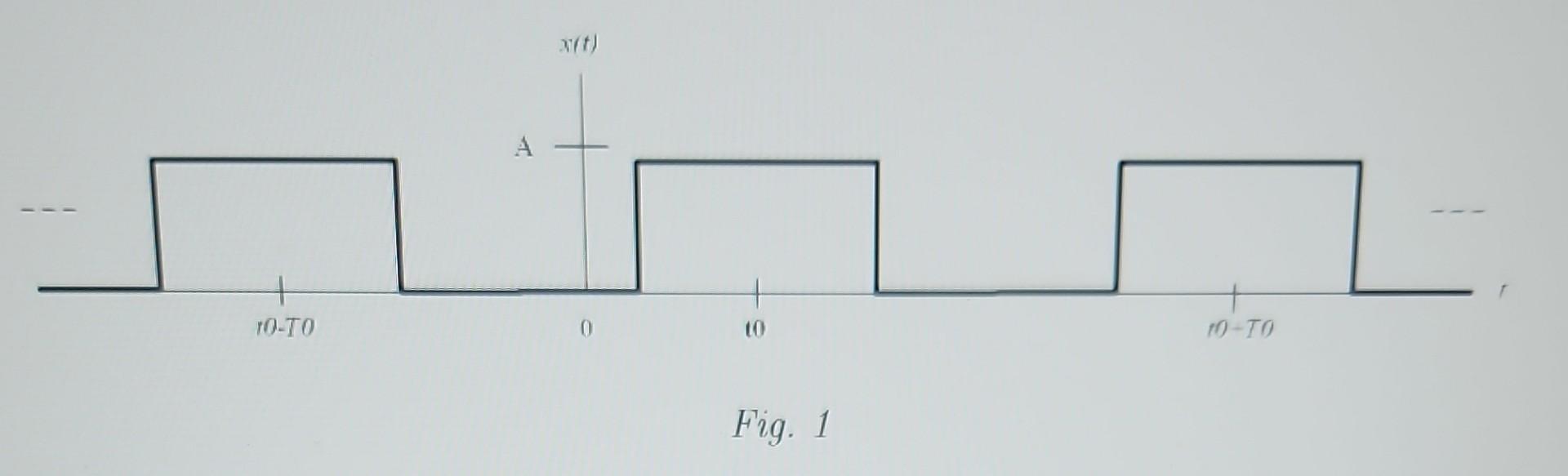

1. Use Fourier transform to find the spectrum of the periodic rectangular pulse voltage signal $$x(t)$$ shown in Fig 1 (a) Find the complex exponential Fourier series representation of the signal. (b) Plot the amplitude and phase spectra for the clock when the computer has a clock rate of $$f_c=200\mathrm{MHz}$$, the clock pulses have an amplitude of $$4\mathrm{V}$$ and a width of $$0.002?\mathrm{s}$$ and $$t_0=0.0?\mathrm{s}$$. (c) Repeat part b with $$t_0=0.002?\mathrm{s}$$. $$?23^{?}$$ Fig. 1
