(Solved):
13) Analyzing the circuit and calculate the theoretical value of gain and quiescent current (ICQ ...

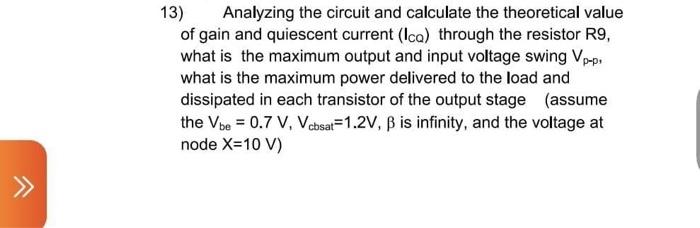

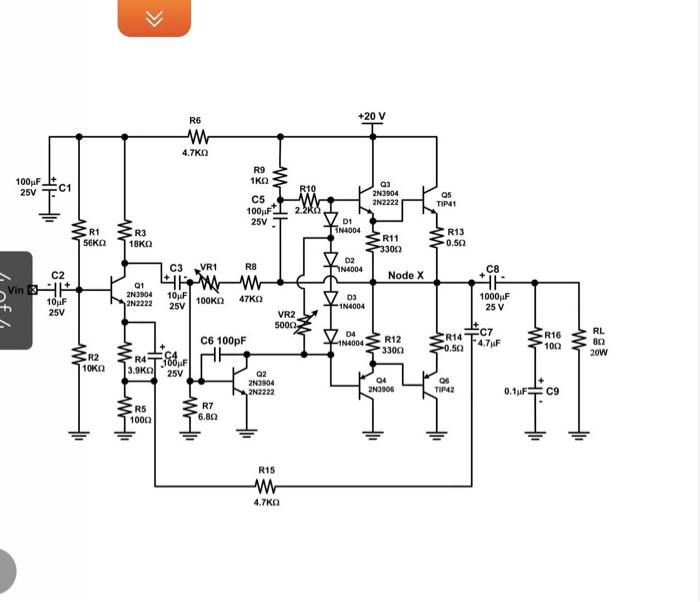

13) Analyzing the circuit and calculate the theoretical value of gain and quiescent current (ICQ) through the resistor R9, what is the maximum output and input voltage swing Vp−p, what is the maximum power delivered to the load and dissipated in each transistor of the output stage (assume the Vbe=0.7V,Vcbsat =1.2V,β is infinity, and the voltage at node X=10V )
