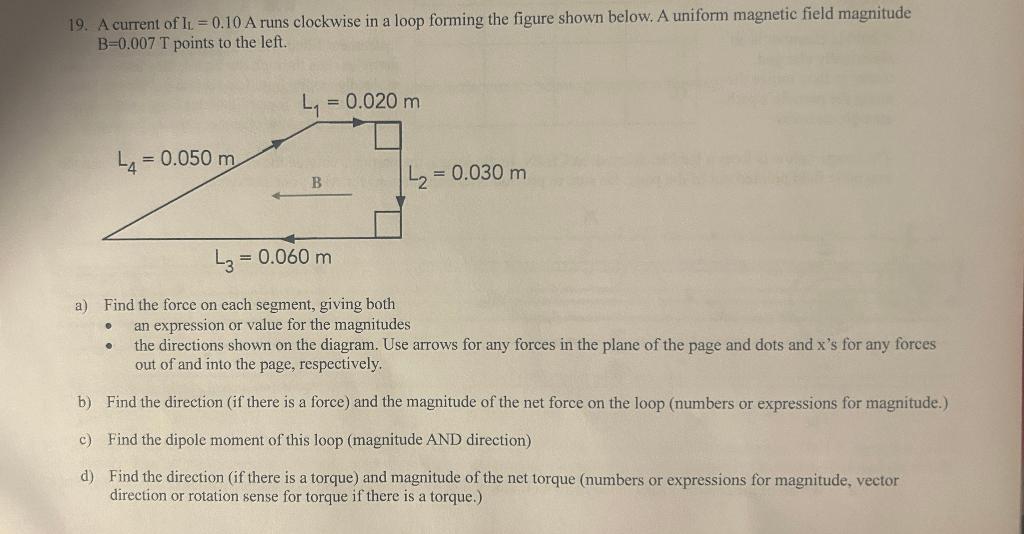

19. A current of ${\mathrm{I}}_{\mathrm{L}}=0.10$ A runs clockwise in a loop forming the figure shown below. A uniform magnetic field magnitude $B=0.007\mathrm{T}$ points to the left. a) Find the force on each segment, giving both - an expression or value for the magnitudes - the directions shown on the diagram. Use arrows for any forces in the plane of the page and dots and $x$ 's for any forces out of and into the page, respectively. b) Find the direction (if there is a force) and the magnitude of the net force on the loop (numbers or expressions for magnitude.) c) Find the dipole moment of this loop (magnitude AND direction) d) Find the direction (if there is a torque) and magnitude of the net torque (numbers or expressions for magnitude, vector direction or rotation sense for torque if there is a torque.)
