(Solved): 2. [4 Pts] Modify the code of the x-bit counter shown in Code Example 5 to accommodate the followin ...

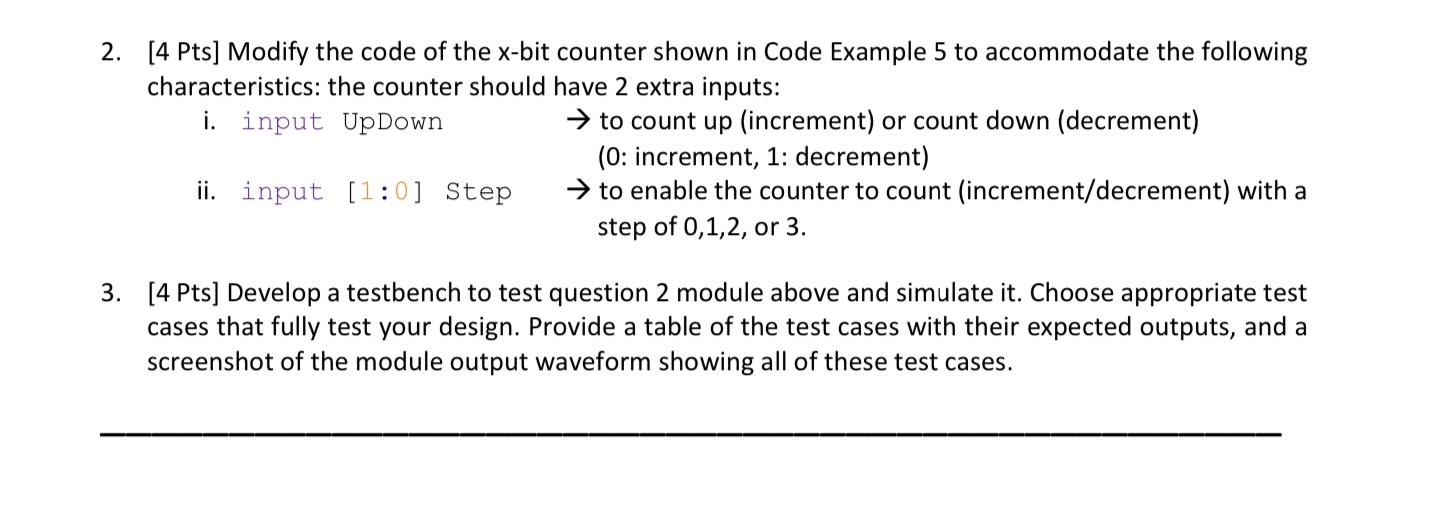

2. [4 Pts] Modify the code of the $x$-bit counter shown in Code Example 5 to accommodate the following characteristics: the counter should have 2 extra inputs: i. input UpDown $\to$ to count up (increment) or count down (decrement) (0: increment, 1 : decrement) ii. input $[1:0]$ Step $\to$ to enable the counter to count (increment/decrement) with a step of $0,1,2$, or 3 . 3. [4 Pts] Develop a testbench to test question 2 module above and simulate it. Choose appropriate test cases that fully test your design. Provide a table of the test cases with their expected outputs, and a screenshot of the module output waveform showing all of these test cases. Code Example 5: $x$-bit mod-n binary counter: module counter_x_bit \# (parameter $\mathrm{x}=3,\mathrm{n}=6$ ) (input clk, reset, output [x-1:0] count); reg $[x-1:0]$ count; always @ (posedge clk, posedge reset) begin if (reset $==1$ ) count <= 0; // non-blocking assignment // initialize flip flop here else if (count $==n-1$ ) count <= 0; // non-blocking assignment // reach count end and get back to zero else count <= count $+1;//$ non-blocking assignment // normal operation end
