(Solved): 2. The network shown in Figure. Q2 consists of four tesistors R1=4,R2=3. RQ3mR,R4=8 and DC ...

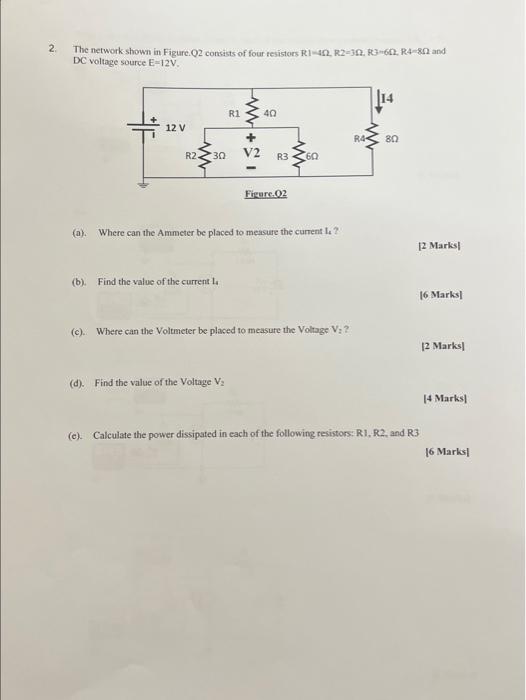

2. The network shown in Figure. $Q2$ consists of four tesistors $\mathrm{R}1=4\Omega ,\mathrm{R}2=3\Omega$. $\mathrm{RQ}3\mathrm{m}\mathrm{R},\mathrm{R}4=8\Omega$ and DC voltage source $\mathrm{E}=12\mathrm{V}$. (a). Where can the Ammeter be placed to measure the current ${\mathrm{L}}_4$ ? [2 Marks| (b). Find the value of the current 4 . [6 Marks] (c). Where can the Voltmeter be placed to measure the Voltage $V_2$ ? [2 Marks| (d). Find the value of the Voltage $V_2$ [4 Marks] (c). Calculate the power dissipated in each of the following resistors: R1, R2, and R3 [6 Marks]
