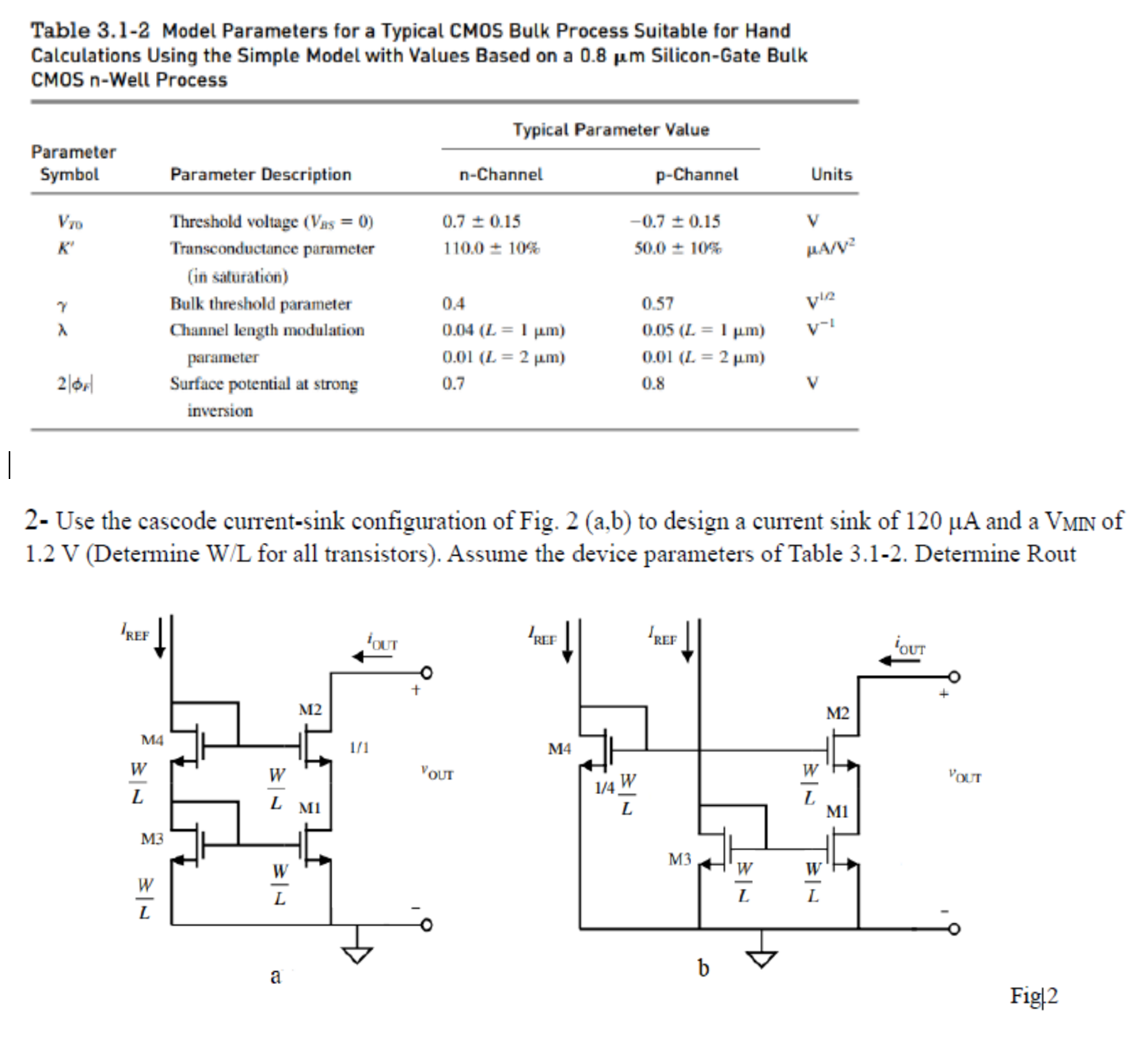

2- Use the cascode current-sink configuration of Fig. ( 2( mathrm{a}, mathrm{b}) ) to design a current sink of ( 120 mu mathrm{~A} ) and a VMIN of 1.2 V (Determine W/L for all transistors). Assume the device parameters of Table 3.1-2. Determine Rout Fig| 2

Question

2- Use the cascode current-sink configuration of Fig.  ( 2( mathrm{a},  mathrm{b})  ) to design a current sink of  ( 120  mu  mathrm{~A}  ) and a VMIN of 1.2 V (Determine W/L for all transistors). Assume the device parameters of Table 3.1-2. Determine Rout Fig| 2

Accepted Answer

Expert Answer to - 2- Use the cascode current-sink configuration of Fig.  ( 2( mathrm{a},  mathrm{b})  ) to design a cu

Answer

Solution for - 2- Use the cascode current-sink configuration of Fig.  ( 2( mathrm{a},  mathrm{b})  ) to design a cu

Answer

This an additional answer to - 2- Use the cascode current-sink configuration of Fig.  ( 2( mathrm{a},  mathrm{b})  ) to design a cu

(Solved): 2- Use the cascode current-sink configuration of Fig. \( 2(\mathrm{a}, \mathrm{b}) \) to design a cu ...

View Expert Answer

Expert Answer
