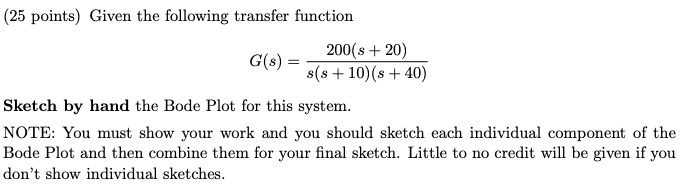

(25 points) Given the following transfer function 200(8+20) G(S) = s(8 + 10) (s +40) Sketch by hand the Bode Plot for this system. NOTE: You must show your work and you should sketch each individual component of the Bode Plot and then combine them for your final sketch. Little to no credit will be given if you don't show individual sketches.
