(Solved): 2nd Example of edge triggering for a simple sequential circuit Given a three input (X,Y,clk) and ...

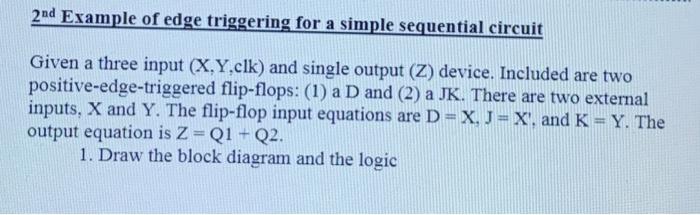

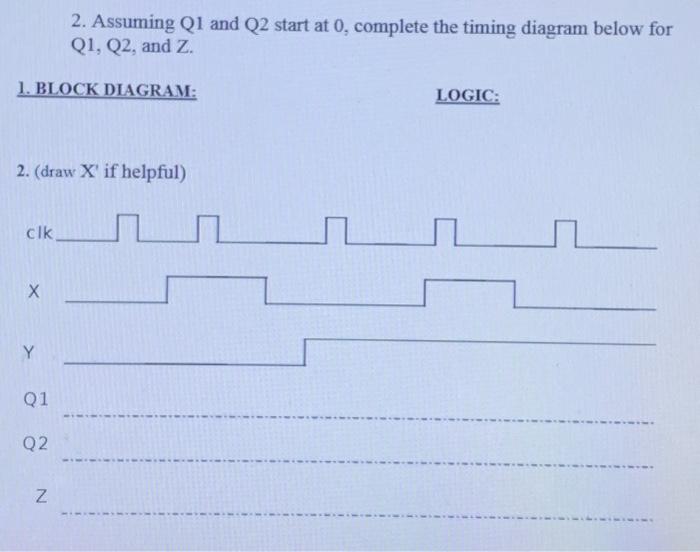

$2^{\text{nd }}$ Example of edge triggering for a simple sequential circuit Given a three input (X,Y,clk) and single output (Z) device. Included are two positive-edge-triggered flip-flops: (1) a D and (2) a JK. There are two external inputs, $X$ and $Y$. The flip-flop input equations are $D=X,J=X$, and $K=Y$. The output equation is $Z=Q1+\mathrm{Q}2$. 1. Draw the block diagram and the logic 2. Assuming $\mathrm{Q}1$ and $\mathrm{Q}2$ start at 0 , complete the timing diagram below for
