(Solved): [5 pts.] Consider the 3 circuits shown in the figure below. Assume all batteries are identical and a ...

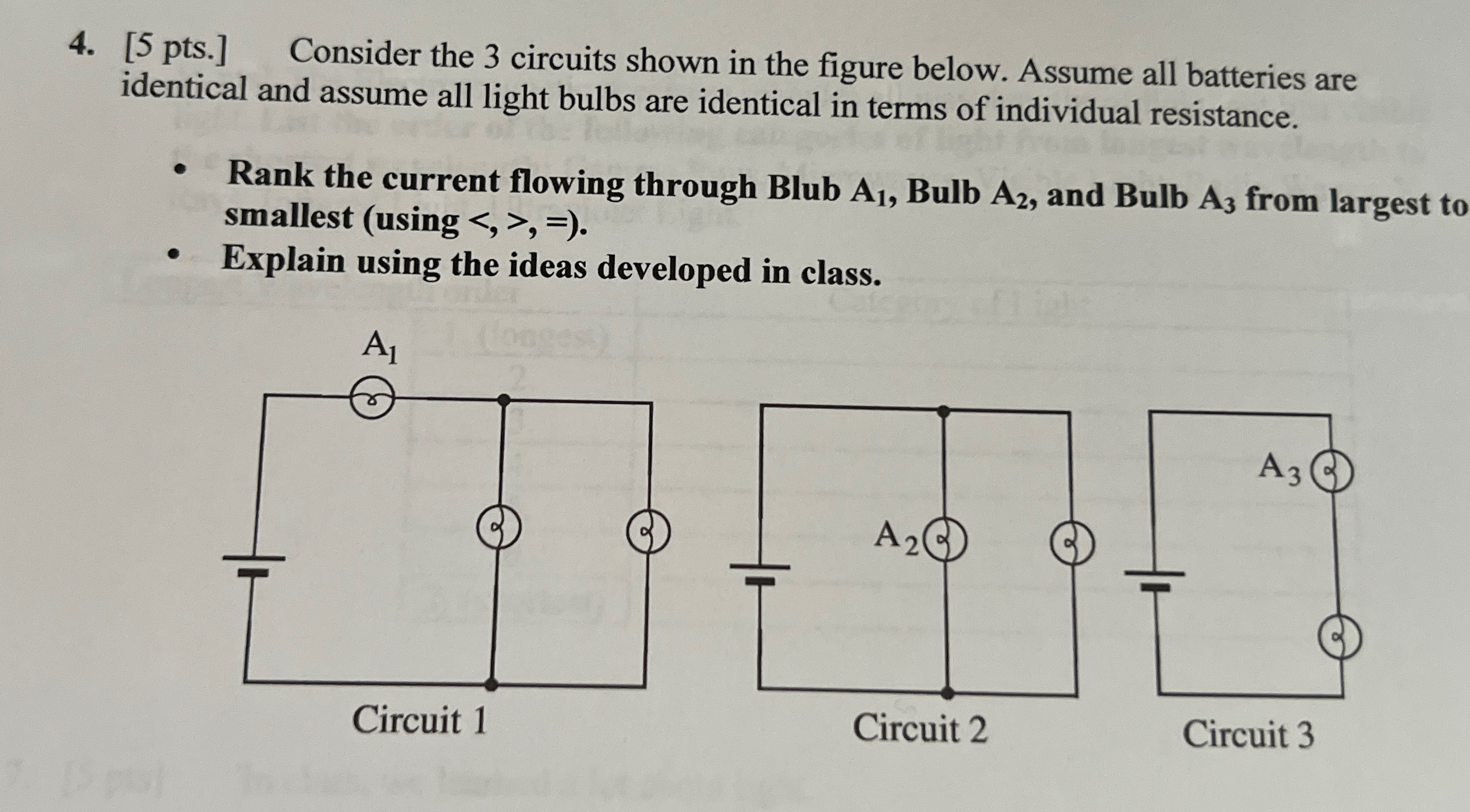

[5 pts.] Consider the 3 circuits shown in the figure below. Assume all batteries are identical and assume all light bulbs are identical in terms of individual resistance. Rank the current flowing through Blub
A_(1), Bulb
A_(2), and Bulb
A_(3)from largest to smallest (using
<,>,=). Explain using the ideas developed in class.
