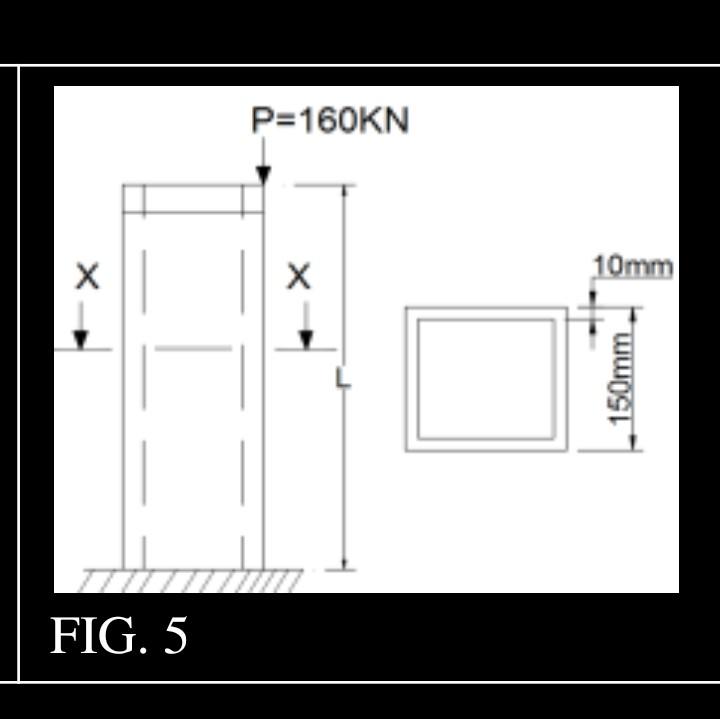

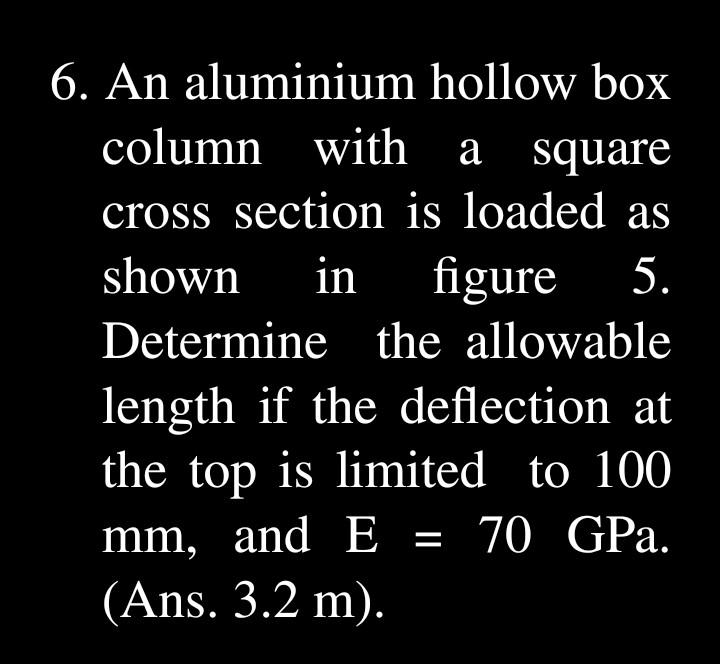

6. An aluminium hollow box column with a square cross section is loaded as shown in figure 5. Determine the allowable length if the deflection at the top is limited to 100 $mm$ , and $E = 70 GPa$ . (Ans. $3.2 m$ ). FIG. 5

Question

6. An aluminium hollow box column with a square cross section is loaded as shown in figure 5. Determine the allowable length

FIG. 5

6. An aluminium hollow box column with a square cross section is loaded as shown in figure 5. Determine the allowable length if the deflection at the top is limited to 100

mm

, and

E = 70 GPa

. (Ans.

3.2 m

). FIG. 5
