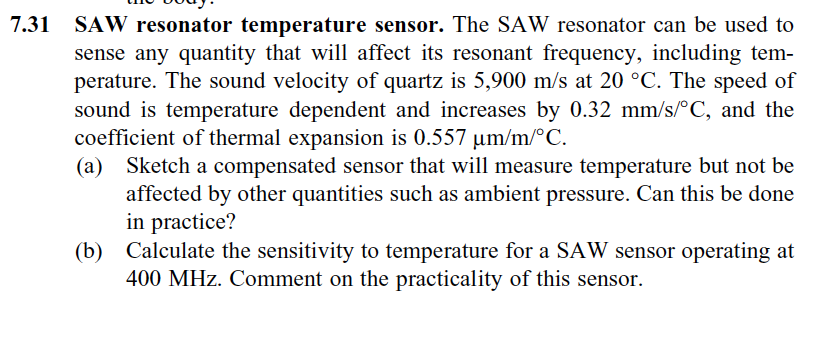

7.31 SAW resonator temperature sensor. The SAW resonator can be used to sense any quantity that will affect its resonant frequency, including tem- perature. The sound velocity of quartz is 5,900 m/s at 20 °C. The speed of sound is temperature dependent and increases by 0.32 mm/s/°C, and the coefficient of thermal expansion is 0.557 µm/m/°C. (a) Sketch a compensated sensor that will measure temperature but not be affected by other quantities such as ambient pressure. Can this be done in practice? (b) Calculate the sensitivity to temperature for a SAW sensor operating at 400 MHz. Comment on the practicality of this sensor.
