(Solved): 7-33 and 7-35 In Problems 7-33 through 7-36, determine the transfer functions from the pole-zero plo ...
7-33 and 7-35

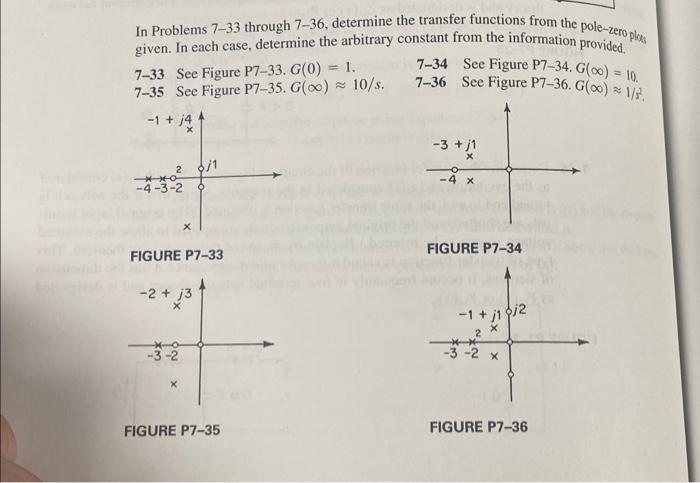

In Problems 7-33 through 7-36, determine the transfer functions from the pole-zero plow given. In each case, determine the arbitrary constant from the information provided, 7-33 See Figure P7-33. G(0)=1.7−34 See Figure P7-34. G(∞)=107−35 See Figure P7-35. G(∞)≈10/s.7−36 See Figure P7-36. G(∞)≈1/21, FIGURE P7-33 FIGURE P7-34 FIGURE P7-35 FIGURE P7-36
