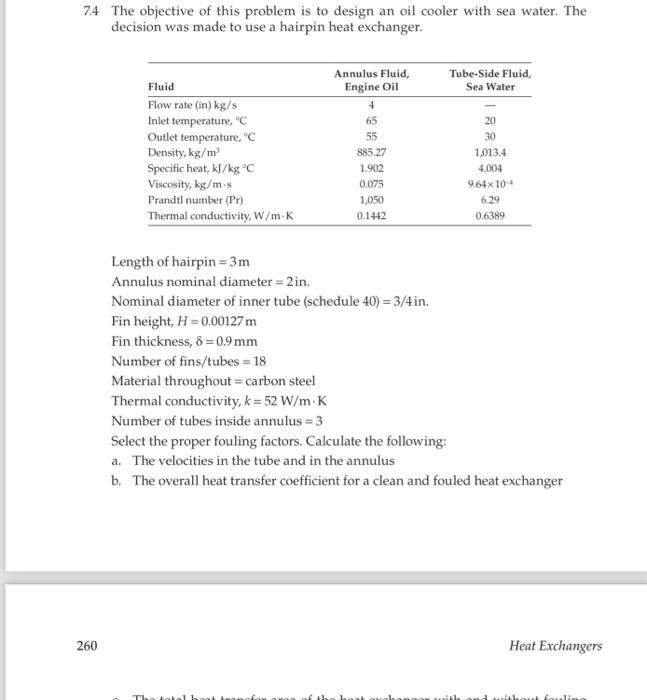

7.4 The objective of this problem is to design an oil cooler with sea water. The decision was made to use a hairpin heat exchanger. Length of hairpin $=3\mathrm{m}$ Annulus nominal diameter $=2$ in. Nominal diameter of inner tube (schedule 40 ) $=3/4$ in . Fin height, $H=0.00127\mathrm{m}$ Fin thickness, $\delta =0.9\mathrm{mm}$ Number of fins/tubes $=18$ Material throughout $=$ carbon steel Thermal conductivity, $k=52\mathrm{W}/\mathrm{m}\cdot \mathrm{K}$ Number of tubes inside annulus $=3$ Select the proper fouling factors. Calculate the following: a. The velocities in the tube and in the annulus b. The overall heat transfer coefficient for a clean and fouled heat exchanger
