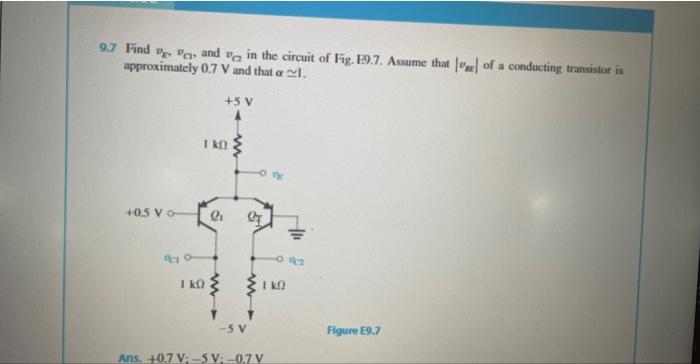

\( 9.7 \) Find \( v_{E}, v_{C} \), and \( v_{C Z} \) in the circuit of Fig. E9.7. Assume that \( \left|v_{a r}\right| \) of a conducting transiator is approximately \( 0.7 \mathrm{~V} \) and that \( \alpha \simeq 1 \). gure E9.7
Expert Answer
From the given circuit, For transistor Q2 , VB = 0 V (As it is grounded ) |VBE| = 0.7 v, VB - VE = 0.7 v, 0 - VE = 0.7 v, VE = -0.7 v For pnp transist
