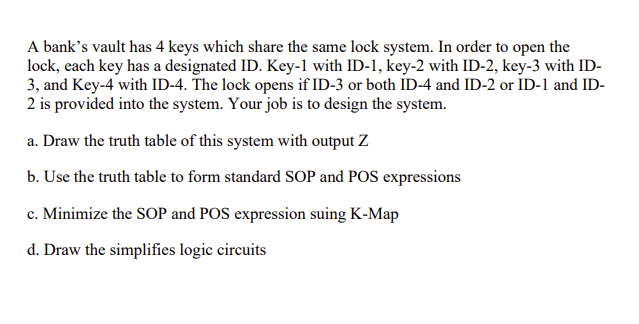

A bank's vault has 4 keys which share the same lock system. In order to open the lock, each key has a designated ID. Key-1 with ID-1, key-2 with ID-2, key-3 with ID3 , and Key-4 with ID-4. The lock opens if ID-3 or both ID-4 and ID-2 or ID-1 and ID2 is provided into the system. Your job is to design the system. a. Draw the truth table of this system with output b. Use the truth table to form standard SOP and POS expressions c. Minimize the SOP and POS expression suing K-Map d. Draw the simplifies logic circuits
