(Solved): A BCD decade counter is shown in the figure. The waveforms are applied to the clock and clear inputs ...

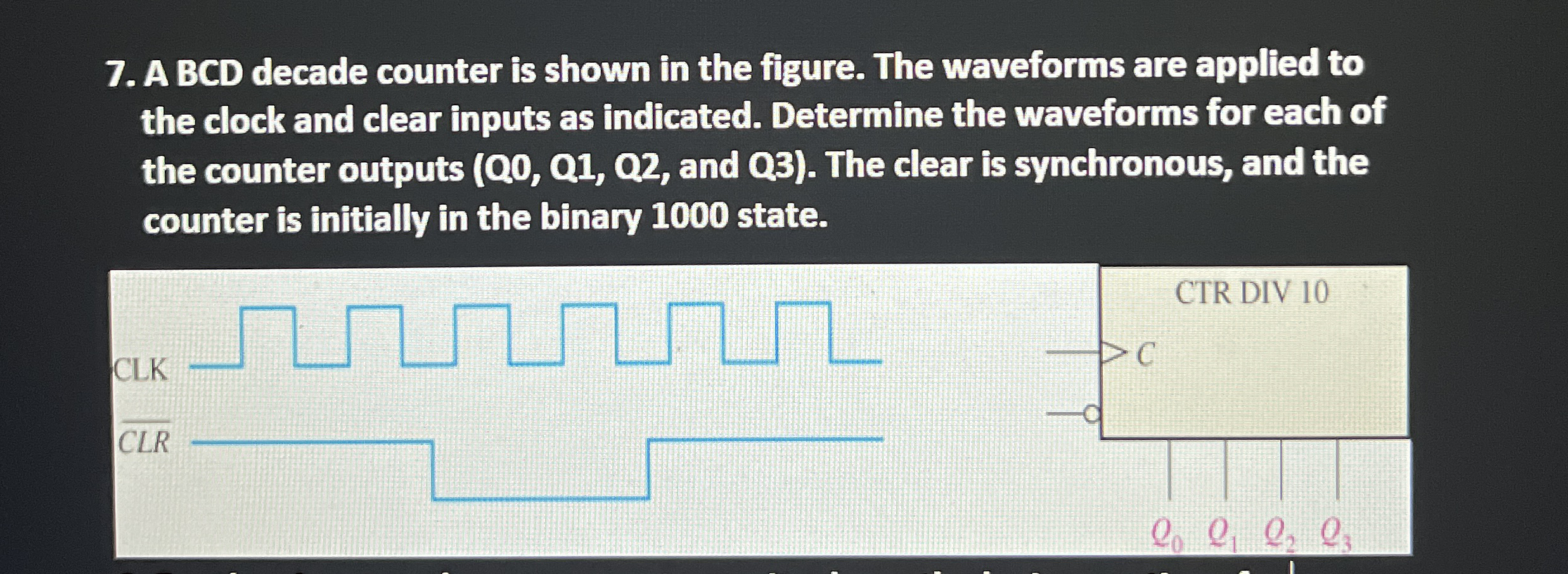

A BCD decade counter is shown in the figure. The waveforms are applied to the clock and clear inputs as indicated. Determine the waveforms for each of the counter outputs ( Q.0, Q1, Q2, and Q3). The clear is synchronous, and the counter is initially in the binary 1000 state.
