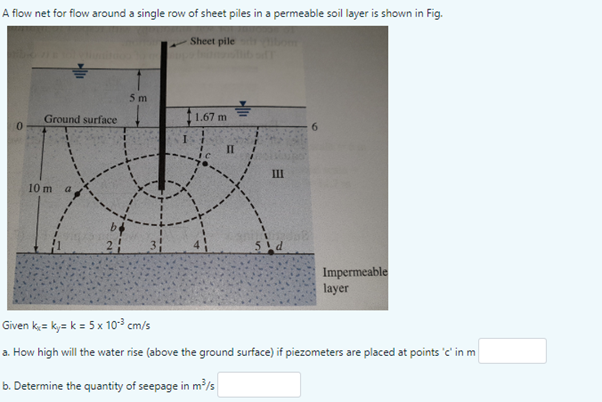

A flow net for flow around a single row of sheet piles in a permeable soil layer is shown in Fig. Sheet pile 5m Ground surface 1.67 m 0 6 II E III 10 m a Impermeable layer Given k = ky= k = 5 x 10. cm/s a. How high will the water rise (above the ground surface) if piezometers are placed at points 'c' in m b. Determine the quantity of seepage

Question

A flow net for flow around a single row of sheet piles in a permeable soil layer is shown in Fig. Sheet pile 5m Ground surface 1.67 m 0 6  II E III 10 m a Impermeable layer Given k = ky= k = 5 x 10. cm/s a. How high will the water rise (above the ground surface) if piezometers are placed at points 'c' in m b. Determine the quantity of seepage in m/s
