(Solved): A flow net for flow around a single row of sheet piles in a permeable soil layer is shown inFigure 1 ...

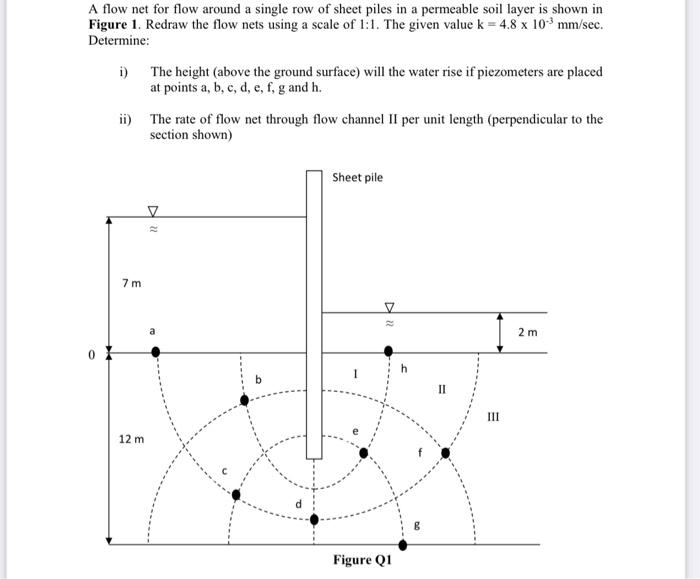

A flow net for flow around a single row of sheet piles in a permeable soil layer is shown in
Figure 1. Redraw the flow nets using a scale of 1:1. The given value k = 4.8 x 10-3 mm/sec.
Determine:
The height (above the ground surface) will the water rise if piezometers are placed
at points a, b, c, d, e, f, g and h.
The rate of flow net through flow channel II per unit length (perpendicular to the
section shown)
A flow net for flow around a single row of sheet piles in a permeable soil layer is shown in Figure 1. Redraw the flow nets using a scale of 1:1. The given value k = 4.8 x 10³ mm/sec. Determine: i) The height (above the ground surface) will the water rise if piezometers are placed at points a, b, c, d, e, f, g and h. ii) The rate of flow net through flow channel II per unit length (perpendicular to the section shown) Sheet pile 2 m 0 7m 12 m ? 22 ? 12 Figure Q1 = II E III
