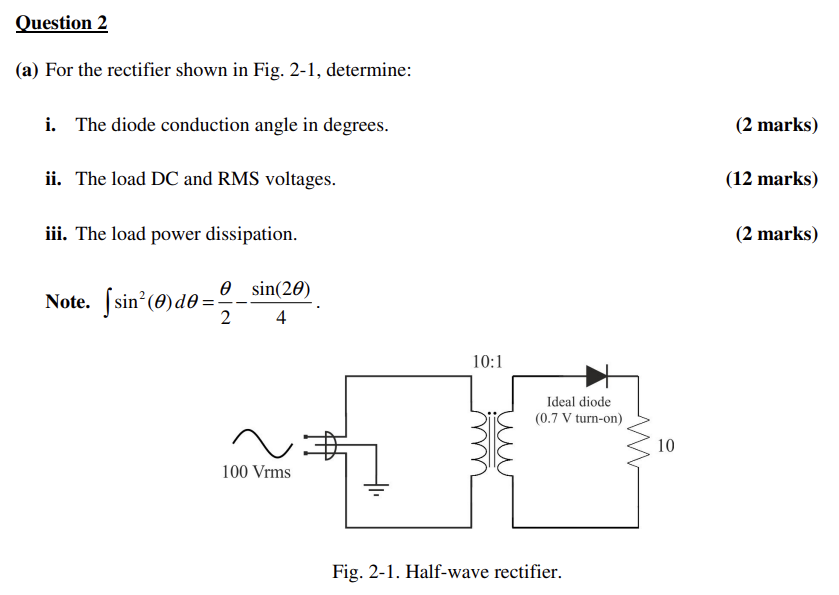

(a) For the rectifier shown in Fig. 2-1, determine: i. The diode conduction angle in degrees. ii. The load DC and RMS voltages. iii. The load power dissipation. Note. ( int sin ^{2}( theta) d theta= frac{ theta}{2}- frac{ sin (2 theta)}{4} ). Fig. 2-1. Half-wave rectifier.

Question

(a) For the rectifier shown in Fig. 2-1, determine: i. The diode conduction angle in degrees. ii. The load DC and RMS voltages. iii. The load power dissipation. Note.   (   int   sin ^{2}(  theta) d   theta=  frac{  theta}{2}-  frac{  sin (2   theta)}{4}   ). Fig. 2-1. Half-wave rectifier.

Accepted Answer

Expert Answer to -  (a) For the rectifier shown in Fig. 2-1, determine: i. The diode conduction angle in degrees. ii. T

Answer

Solution for -  (a) For the rectifier shown in Fig. 2-1, determine: i. The diode conduction angle in degrees. ii. T

Answer

This an additional answer to -  (a) For the rectifier shown in Fig. 2-1, determine: i. The diode conduction angle in degrees. ii. T
