(Solved): A single phase transformer of 20 RVA - 3300/220 V R =S.SR & R = 0.0552 50 Hz Vcc=6%. comical ...

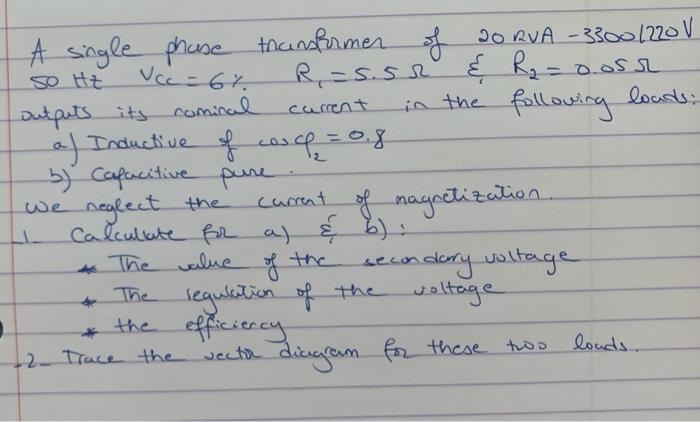

A single phase transformer of 20 RVA - 3300/220 V R? =S.SR & R? = 0.0552 50 Hz Vcc=6%. comical outputs its current in the following loads: af Inductive of caso? = 0.8 ¹2 b) Capacitive pure We neglect the current of magnetization. Calculate for a) & 6): *The value the of secondary voltage The regulation of the voltage the efficiency ) -2_ Trace the vector diagram for these two loads.
