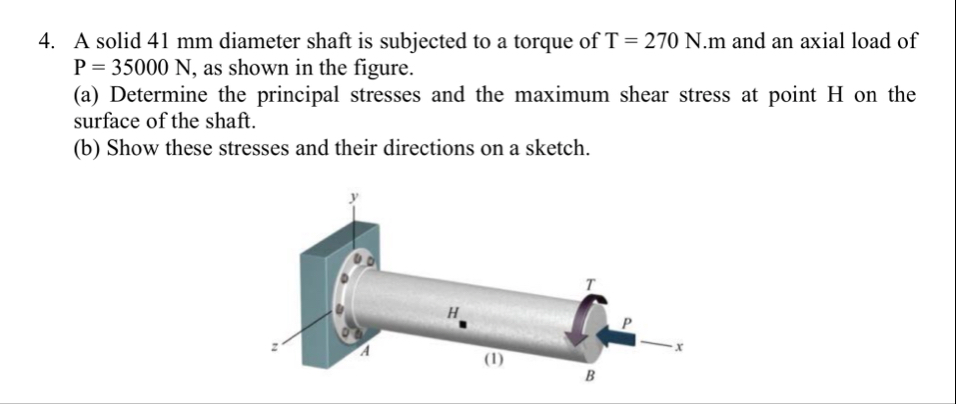

A solid 41 mm diameter shaft is subjected to a torque of
T=270N.m
and an axial load of
P=35000N
, as shown in the figure. (a) Determine the principal stresses and the maximum shear stress at point H on the surface of the shaft. (b) Show these stresses and their directions on a sketch.
