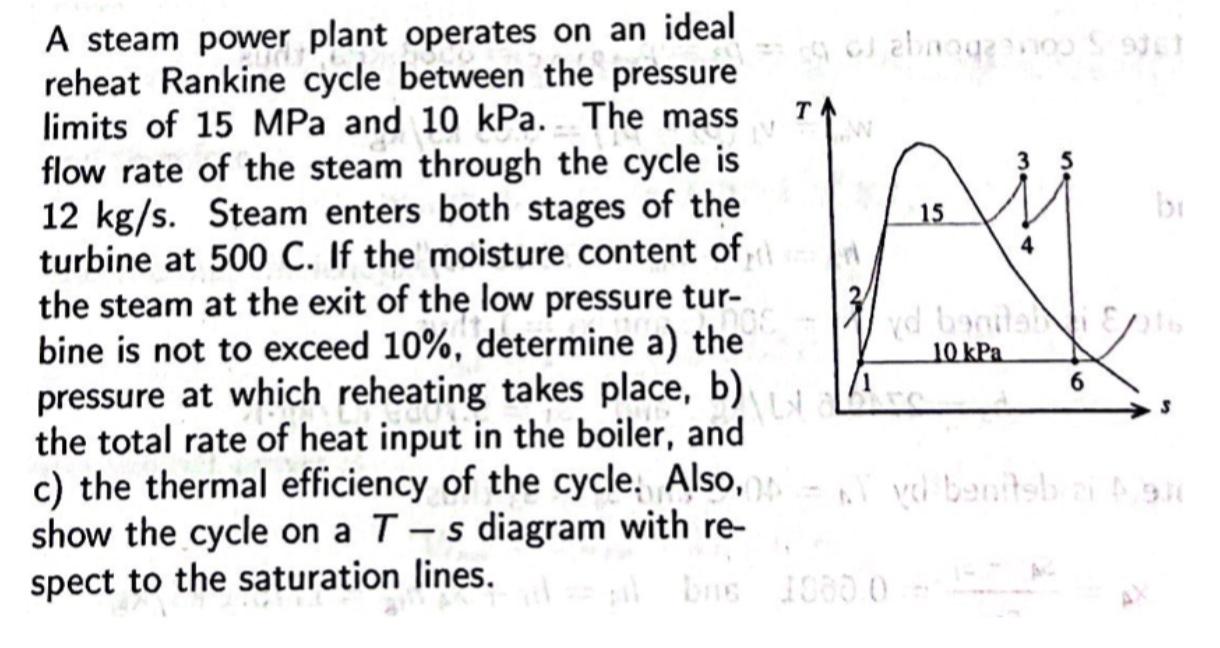

A steam power plant operates on an ideal reheat Rankine cycle between the pressure limits of 15 MPa and 10 kPa. The mass 176 flow rate of the steam through the cycle is 12 kg/s. Steam enters both stages of the turbine at 500 C. If the moisture content of p the steam at the exit of the low pressure tur- bine is not to exceed 10%, determine a) the pressure at which reheating takes place, b) the total rate of heat input in the boiler, and c) the thermal efficiency of the cycle. Also, show the cycle on a T- s diagram with re- spect to the saturation lines. Thos sol abnoga og S-9367 /1 15 4 1380.0 vd bonitali Et 10 kPa br 6 yo benitebizi $920 yd
