(Solved): A tension test of alloy steel results in the stress-strain diagram shown below. Calculate the modu ...

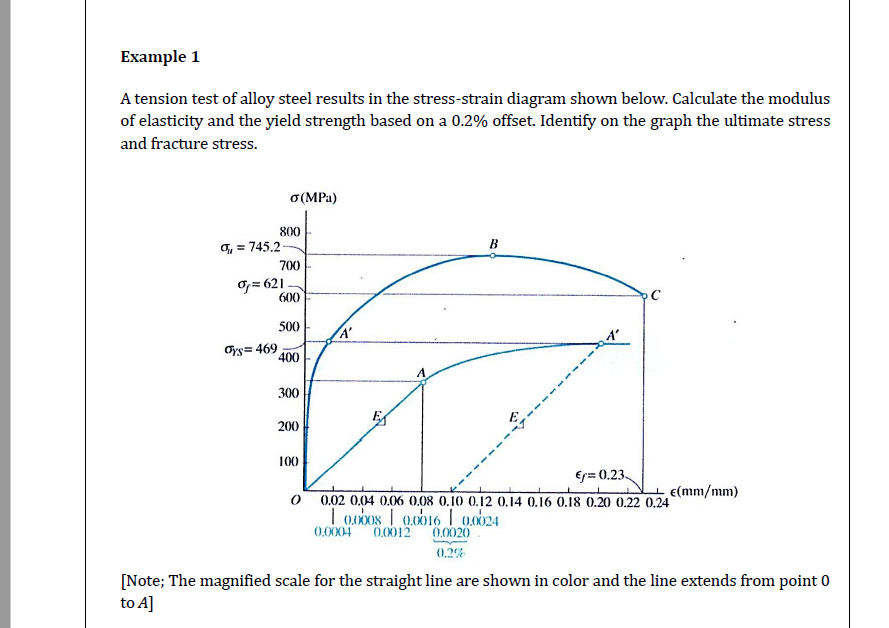

A tension test of alloy steel results in the stress-strain diagram shown below. Calculate the modulus of elasticity and the yield strength based on a \( 0.2 \% \) offset. Identify on the graph the ultimate stress and fracture stress. [Note; The magnified scale for the straight line are shown in color and the line extends from point 0 to \( A] \)
