(Solved): A weight W=3.75kN is supported by a cable that passes over frictionless pulleys at D and F. The cab ...




student submitted image, transcription available below
student submitted image, transcription available below
student submitted image, transcription available below

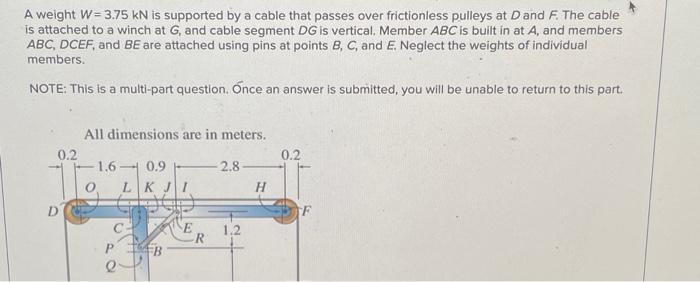

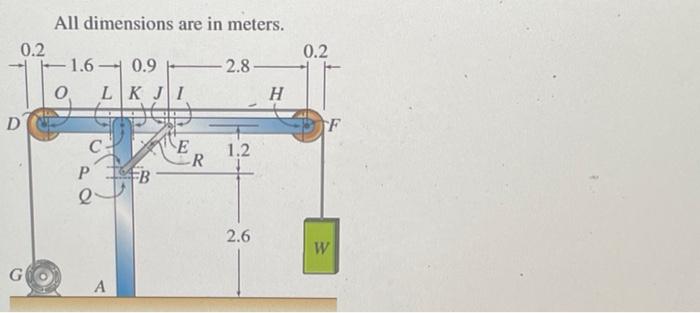

A weight is supported by a cable that passes over frictionless pulleys at and . The cable is attached to a winch at , and cable segment is vertical. Member is built in at , and members , and are attached using pins at points , and . Neglect the weights of individual members. NOTE: This is a multi-part question. Ónce an answer is submitted, you will be unable to return to this part. All dimensions are in meters. Determine the internal forces acting on cross sections and , located immediately to the left of point and to the right of negative numbers for the internal forces based on the standard sign convention for internal forces. The internal forces acting on cross section are as follows: The internal forces acting on cross section lare as follows: All dimensions are in meters.
