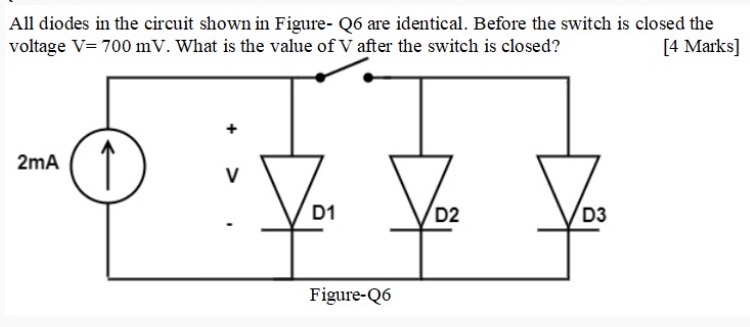

All diodes in the circuit shown in Figure- Q6 are identical. Before the switch is closed the voltage
V=700mV
. What is the value of V after the switch is closed? [4 Marks]

Question

All diodes in the circuit shown in Figure- Q6 are identical. Before the switch is closed the voltage V=700mV. What is the value of V after the switch is closed? [4 Marks]
