Question

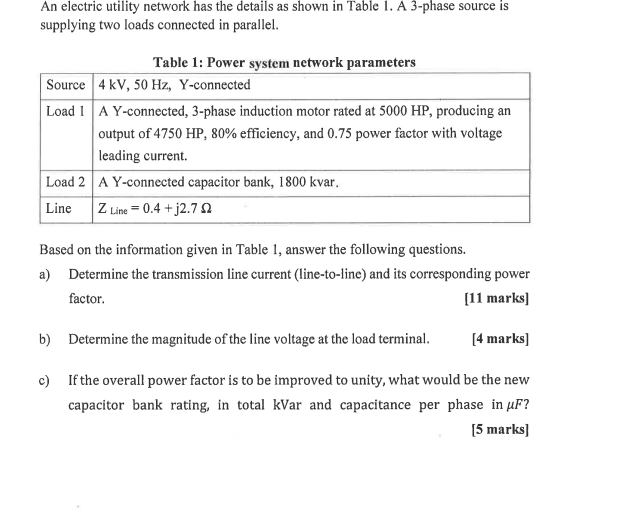

An electric utility network has the details as shown in Table 1. A 3-phase source is supplying two loads connected in parallel. Based on the information given in Table 1, answer the following questions. a) Determine the transmission line current (line-to-line) and its corresponding power factor. [11 marks] b) Determine the magnitude of the line voltage at the load terminal. [4 marks] c) If the overall power factor is to be improved to unity, what would be the new capacitor bank rating, in total kVar and capacitance per phase in  (  mu F  ) ? [5 marks]
