(Solved): An L shaped structure is supported at A and D, and is subjected to two distributed loads and one co ...

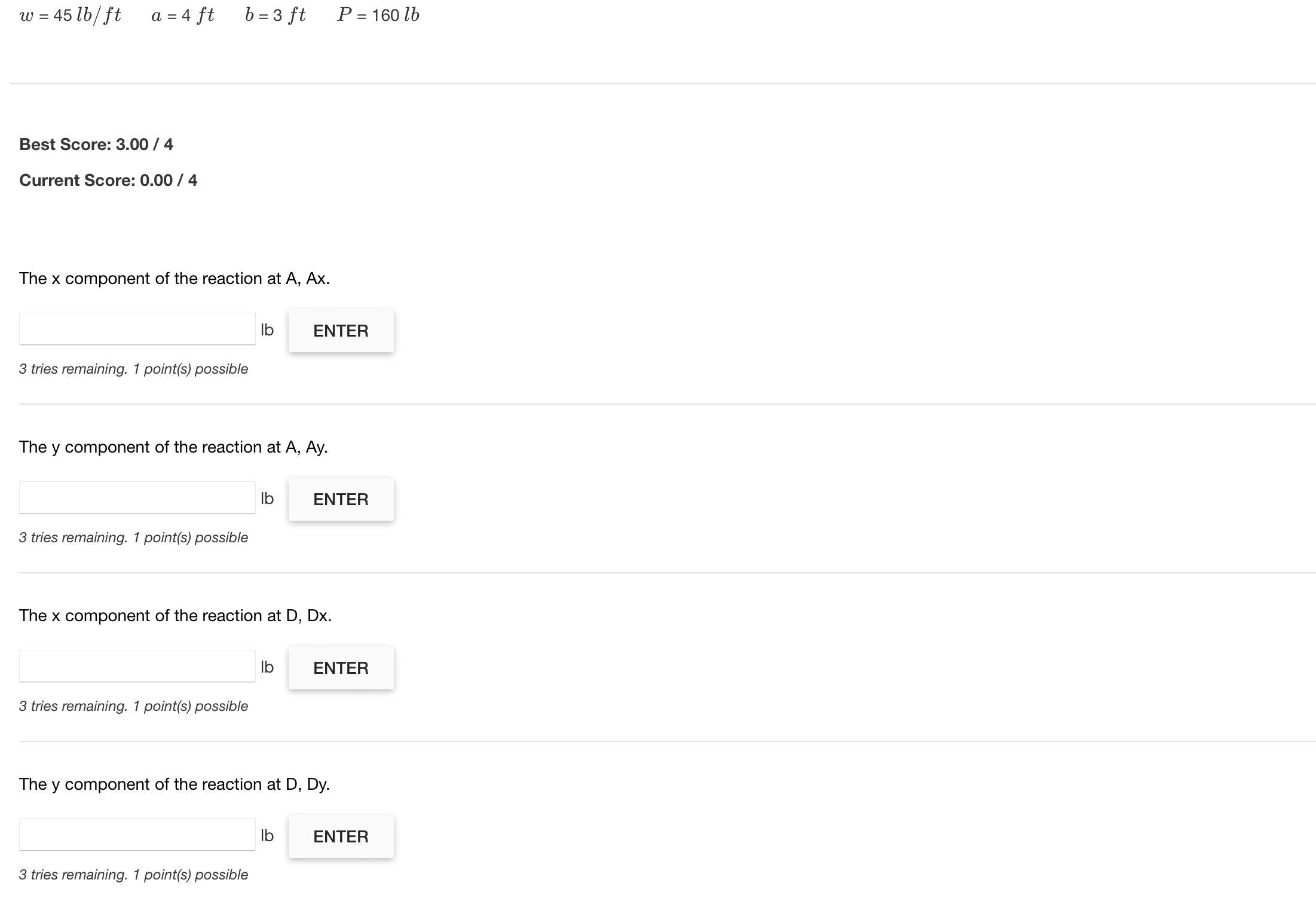

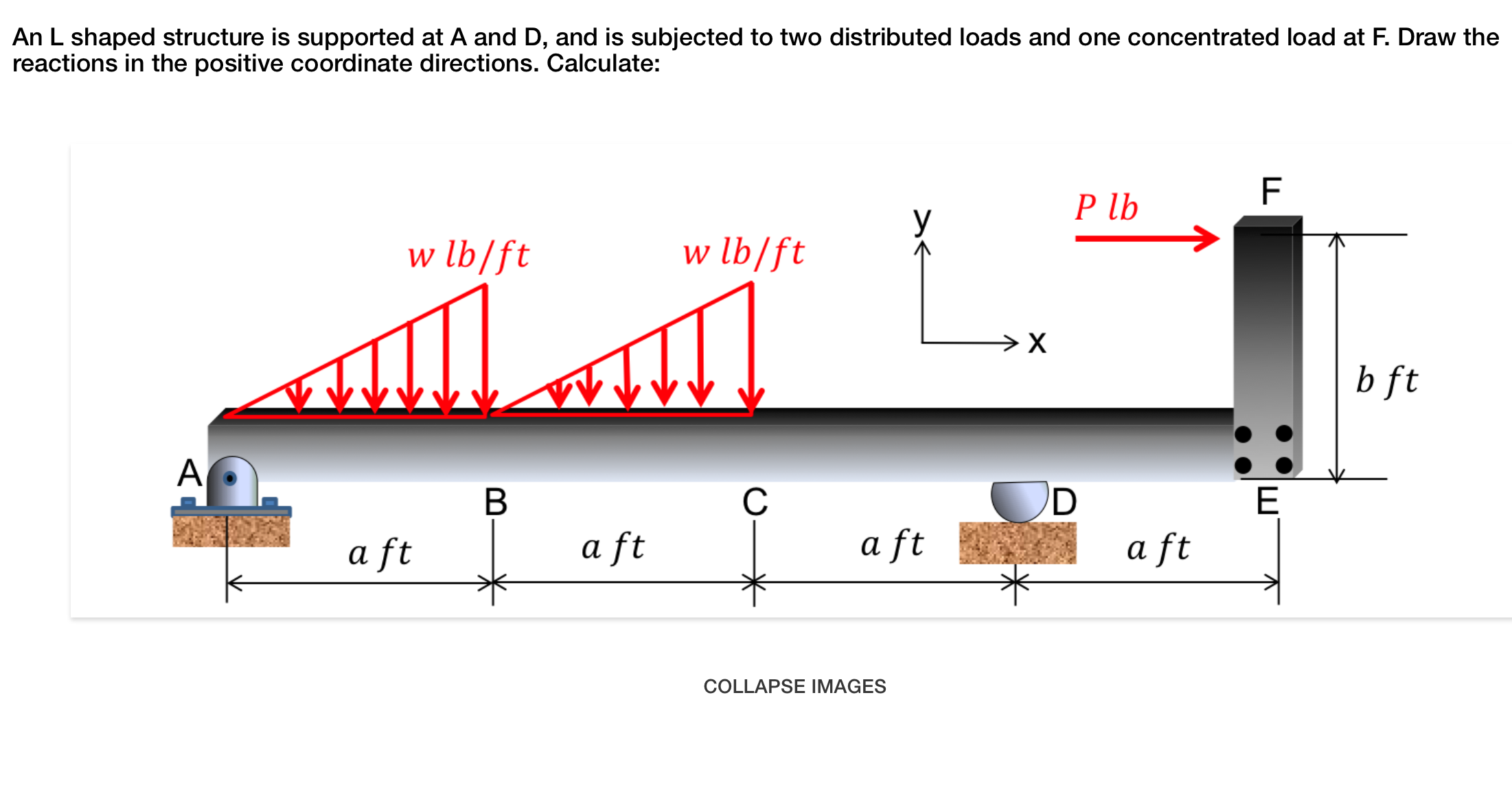

An $L$ shaped structure is supported at $A$ and $D$, and is subjected to two distributed loads and one concentrated load at $F$. Draw the reactions in the positive coordinate directions. Calculate: COLLAPSE IMAGES $w=45\mathrm{lb}/\mathrm{ft}a=4\mathrm{ft}b=3\mathrm{ft}P=160lb$ Best Score: 3.00 / 4 Current Score: $0.00/4$ The $x$ component of the reaction at $A,Ax$. $\mathrm{Ib}$ 3 tries remaining. 1 point(s) possible The y component of the reaction at A, Ay. $\mathrm{lb}$ 3 tries remaining. 1 point(s) possible The $\mathrm{x}$ component of the reaction at $\mathrm{D},\mathrm{Dx}$. $\mathrm{lb}$ 3 tries remaining. 1 point(s) possible The y component of the reaction at D, Dy. $\mathrm{lb}$ 3 tries remaining. 1 point(s) possible
