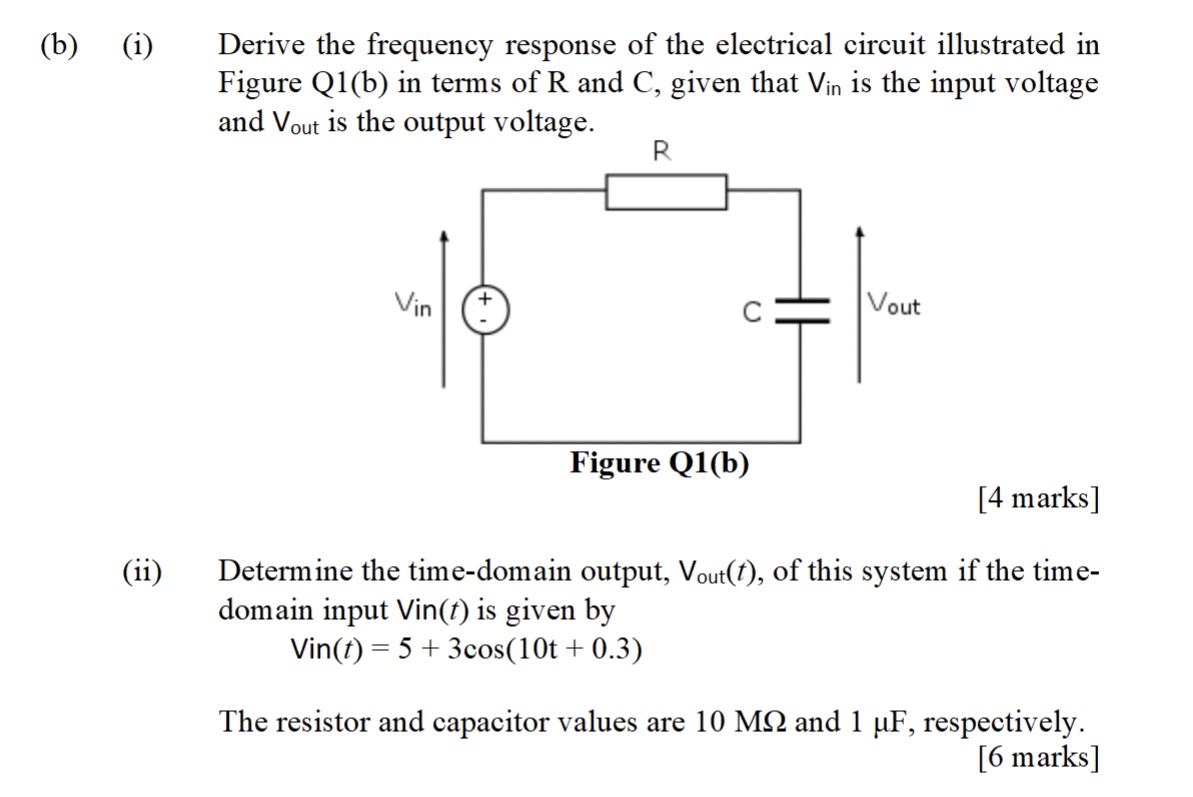

(b) (i) Derive the frequency response of the electrical circuit illustrated in Figure

Q1(b)

in terms of R and C , given that

V_(in )

is the input voltage and

V_(out )

is the output voltage. (ii) Determine the time-domain output,

V_(out )(t)

, of this system if the time- domain input

Vin(t)

is given by

Vin(t)=5+3cos(10t+0.3)

The resistor and capacitor values are

10M\Omega

and

1\mu F

, respectively. [6 marks]
