(Solved): Beam elements are used in the cantilever beam system, which has elements with the same physical prop ...

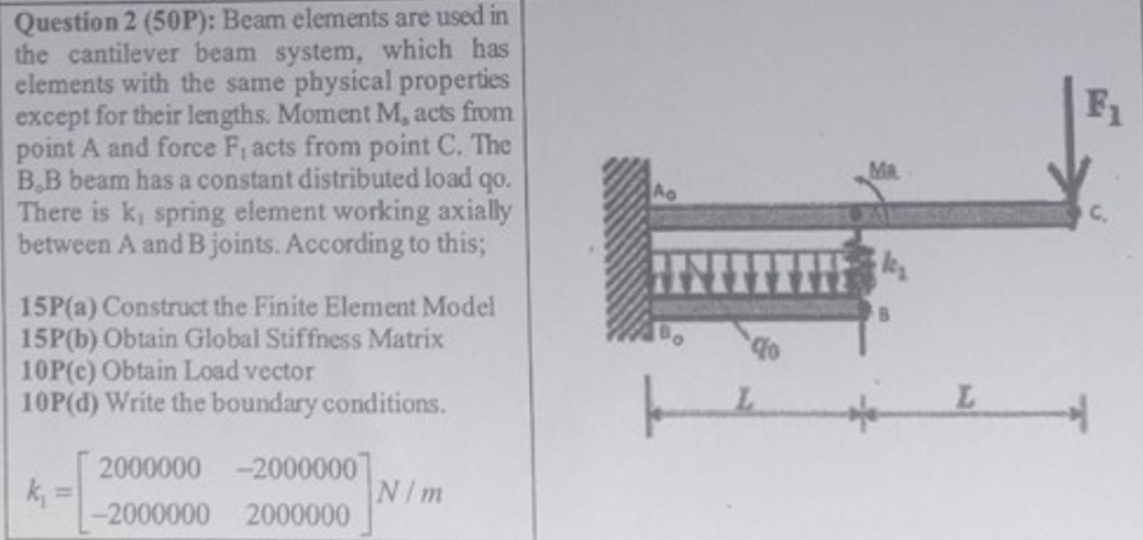

Beam elements are used in the cantilever beam system, which has elements with the same physical properties except for their lengths. Moment M_(3) acts from point A and force F_(1) acts from point C . The B,B beam has a constant distributed load qo . There is k_(1) spring element working axially between A and B joints. According to this; (a) Construct the Finite Element Model (b) Obtain Global Stiffness Matrix (c) Obtain Load vector (d) Write the boundary conditions. k_(1)=[[2000000,-2000000],[-2000000,2000000]](N)/(m) Please solve it on paper,using finite element analysis and draw the finite element model
