(Solved): Beginning with this UML class diagram outline (you may download and print UML Class Diagram Tem ...

Beginning with this UML class diagram outline (you may download and print UML Class Diagram Template.pdf if you wish or redraw it):

...add the following details (~3pt each; partial credit may be awarded):

Bar is a kind of Foo. (In other words: Bar is a child class of Foo; Bar extends Foo; Bar is a type of Foo.)

Baz briefly uses Bar

Bar has a private property named alpha

alpha is of type bool

Baz has a public method (function) named delta

delta takes one parameter named beta that is of type Foo.

delta returns a value of type float.

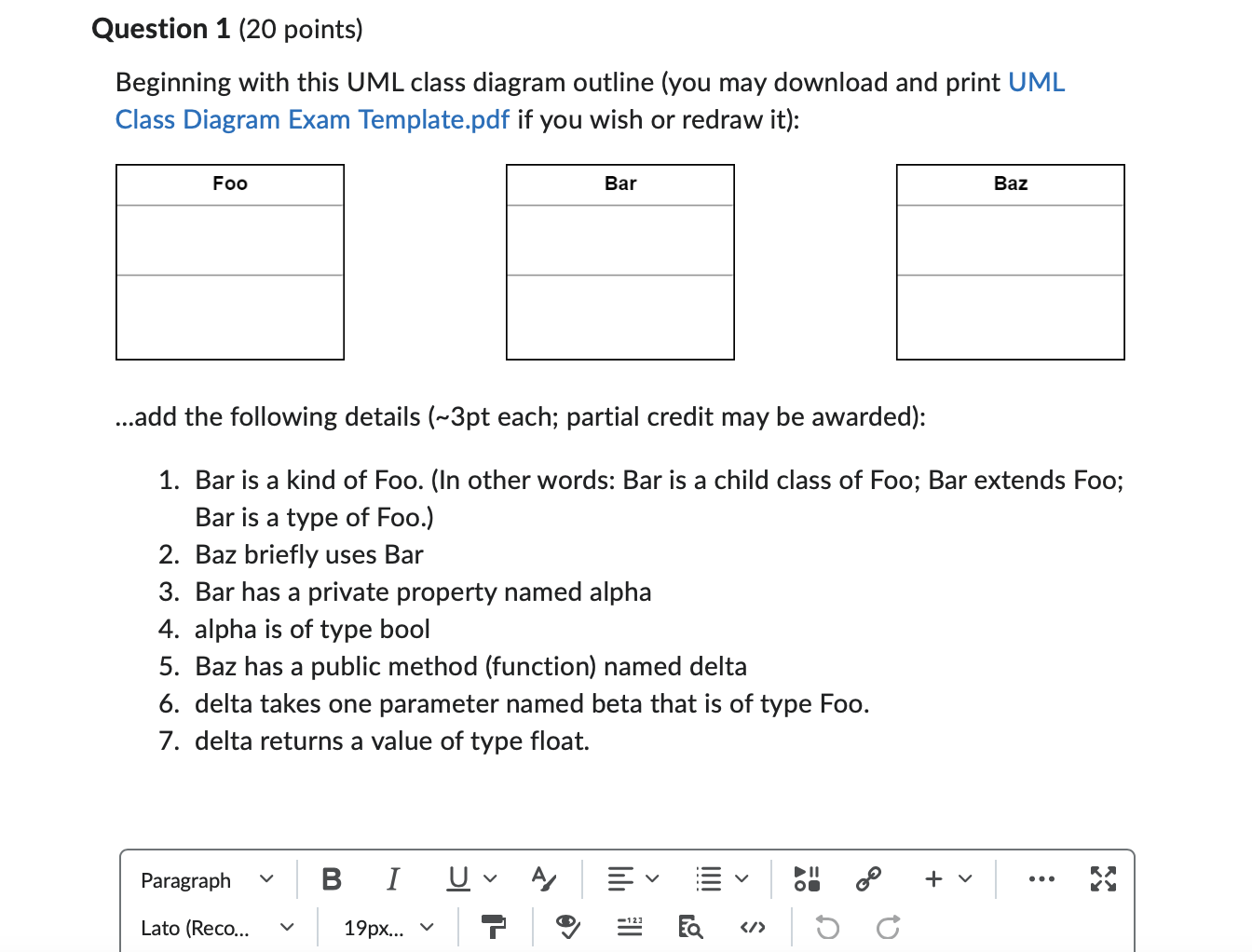

Beginning with this UML class diagram outline (you may download and print UML Class Diagram Exam Template.pdf if you wish or redraw it): ...add the following details ( 3pt each; partial credit may be awarded): 1. Bar is a kind of Foo. (In other words: Bar is a child class of Foo; Bar extends Foo; Bar is a type of Foo.) 2. Baz briefly uses Bar 3. Bar has a private property named alpha 4. alpha is of type bool 5. Baz has a public method (function) named delta 6. delta takes one parameter named beta that is of type Foo. 7. delta returns a value of type float.
