(Solved): Build the NAND gate. Label the inputs and outputs. Turn off the power and remove the 7402 NOR gate. ...
Build the NAND gate. Label the inputs and outputs.

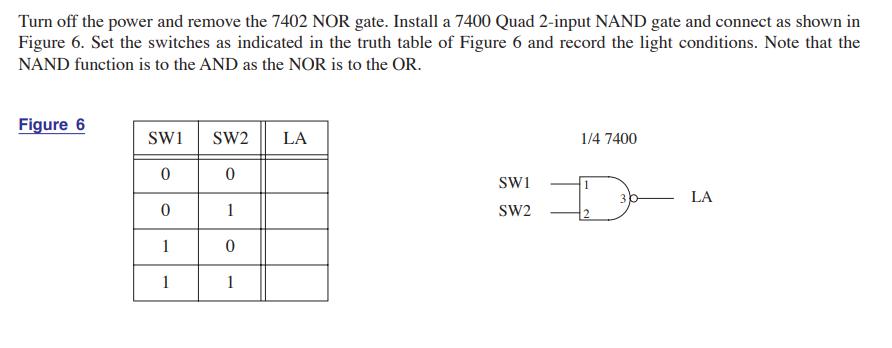

Turn off the power and remove the 7402 NOR gate. Install a 7400 Quad 2-input NAND gate and connect as shown in Figure 6. Set the switches as indicated in the truth table of Figure 6 and record the light conditions. Note that the NAND function is to the AND as the NOR is to the OR. Figure 6
