(Solved): c) The 8254 Programmable Interval Timer (PIT) that has been interfaced with the 8085 microprocesso ...

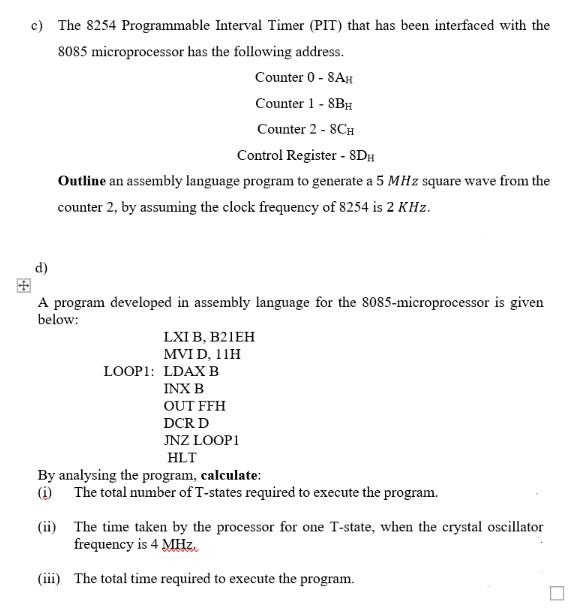

c) The 8254 Programmable Interval Timer (PIT) that has been interfaced with the 8085 microprocessor has the following address. Counter 0 - SAH Counter 1 - 8BH Counter 2 - SCH Control Register - SDH Outline an assembly language program to generate a 5 MHz square wave from the counter 2, by assuming the clock frequency of 8254 is 2 KHz. d) A program developed in assembly language for the 8085-microprocessor is given below: LXIB, B21EH MVID, 11H LOOP1: LDAXB INX B OUT FFH DCRD JNZ LOOP1 HLT By analysing the program, calculate: The total number of T-states required to execute the program. (ii) The time taken by the processor for one T-state, when the crystal oscillator frequency is 4 MHz. (iii) The total time required to execute the program.
