(Solved): c. Use the tool Piece-Wise-Constant-Potential-Lab (https://nanohub.org/tools/pcpbt ). Well 5nm a ...

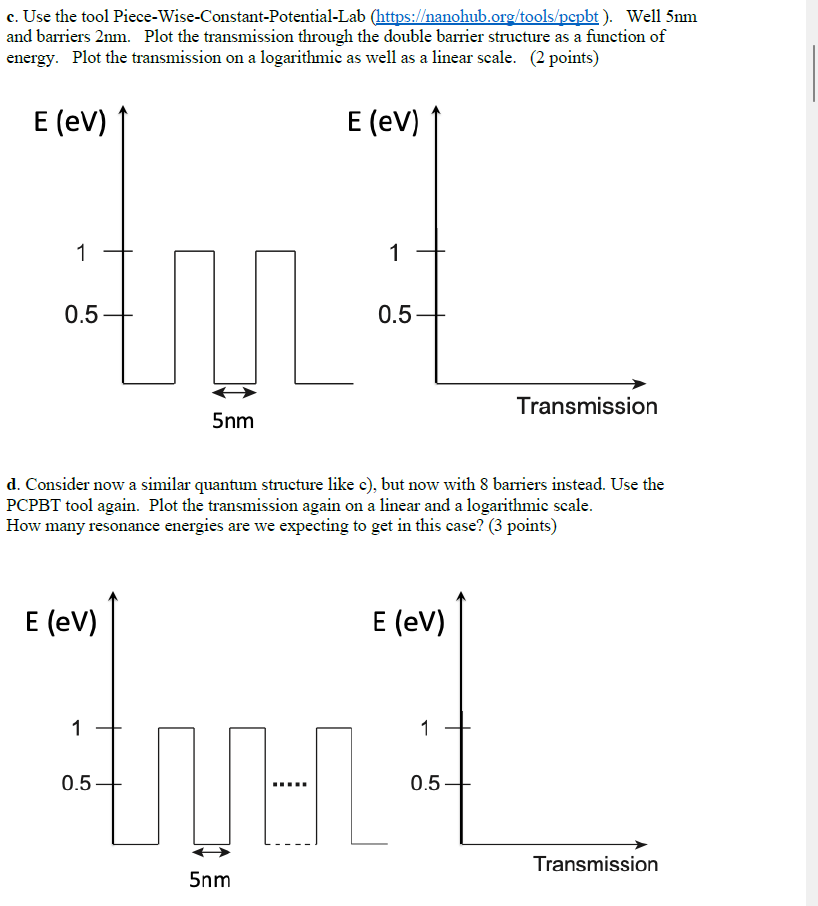

c. Use the tool Piece-Wise-Constant-Potential-Lab (https://nanohub.org/tools/pcpbt ). Well $$5\mathrm{nm}$$ and barriers $$2\mathrm{nm}$$. Plot the transmission through the double barrier structure as a function of energy. Plot the transmission on a logarithmic as well as a linear scale. (2 points) d. Consider now a similar quantum structure like c), but now with 8 barriers instead. Use the PCPBT tool again. Plot the transmission again on a linear and a logarithmic scale. How many resonance energies are we expecting to get in this case? ( 3 points)
