Cable AE is stretched between corners A and E of a bent plate (Figure 3). Knowing that the tension in the cable is 435 N, determine the moment components with respect to point O of the force exerted by the cable :
a- at corner A (Tension T(AE));
b- at corner E (Tension T(EA));

???????

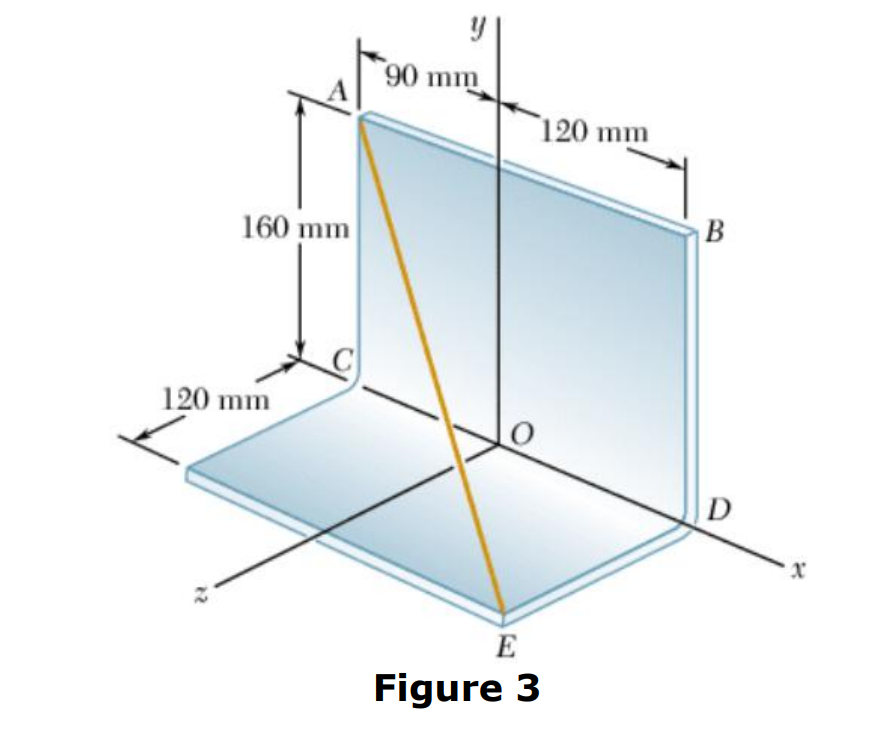

Figure 3

Question

Cable AE is stretched between corners A and E of a bent plate (Figure 3). Knowing that the tension in the cable is 435 N, determine the moment components with respect to point O of the force exerted by the cable :
a- at corner A (Tension T(AE));
b- at corner E (Tension T(EA));

???????

Figure 3
