(Solved): Calculate the shear force and bending moment diagrams in the plot axes below for the loaded beam sho ...

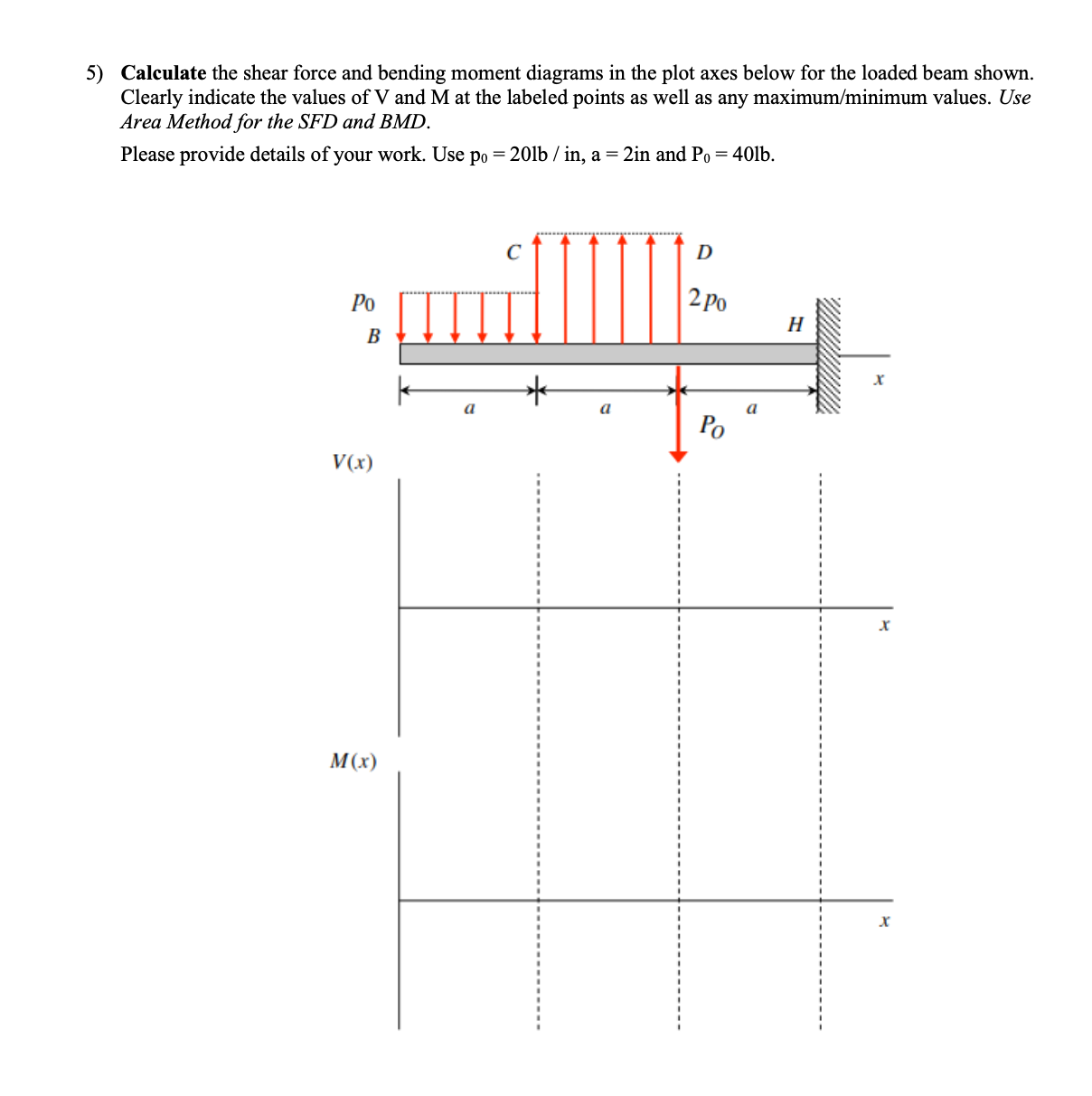

Calculate the shear force and bending moment diagrams in the plot axes below for the loaded beam shown.
Clearly indicate the values of V and M at the labeled points as well as any maximu(m)/(m)inimum values. Use
Area Method for the SFD and BMD.
Please provide details of your work. Use p_(0)=20l(b)/(i)n,a=2in and P_(0)=40lb.
