Circuits

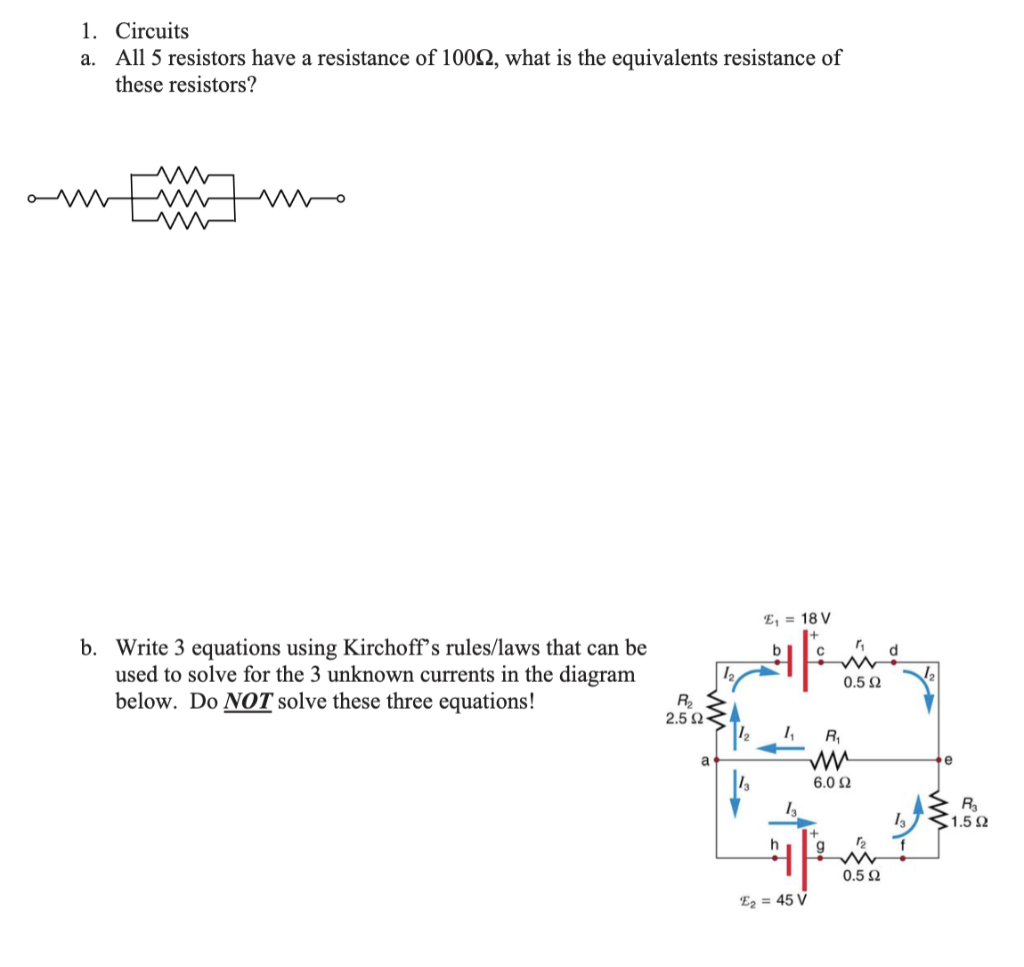

a. All 5 resistors have a resistance of 100Ω, what is the equivalents resistance of

these resistors?

b. Write 3 equations using Kirchoff’s rules/laws that can be

used to solve for the 3 unknown currents in the diagram

below. Do NOT solve these three equations!

1. Circuits a. All 5 resistors have a resistance of $100Ω$, what is the equivalents resistance of these resistors? b. Write 3 equations using Kirchoff's rules/laws that can be used to solve for the 3 unknown currents in the diagram below. Do $NOT $ solve these three equations!
