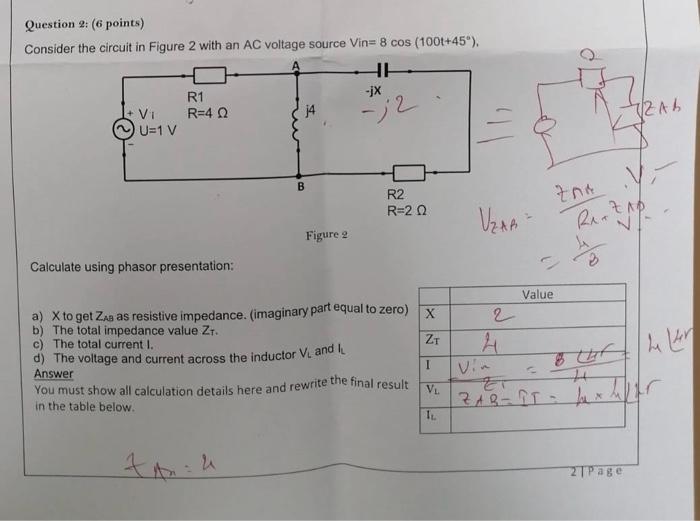

Consider the circuit in Fiqure 2 with an $A C$ voltage source Vin $= 8 cos (100 t + 4 5^{\circ})$ , Calculate using phasor presentation: a) $X$ to get $Z_{A B}$ as resistive impedance. (imaginary part equal to zero) b) The total impedance value $Z_{T}$ . c) The total current I. d) The voltage and current across the inductor $V_{L}$ and $I_{L}$ Answer You must show all calculation details here and rewrite the final result in the table below.

Question

Consider the circuit in Fiqure 2 with an

A C

voltage source Vin

= 8 cos (100 t + 4 5^{\circ})

, Calculate using phasor presentation: a)

X

to get

Z_{A B}

as resistive impedance. (imaginary part equal to zero) b) The total impedance value

Z_{T}

. c) The total current I. d) The voltage and current across the inductor

V_{L}

and

I_{L}

Answer You must show all calculation details here and rewrite the final result in the table below.
