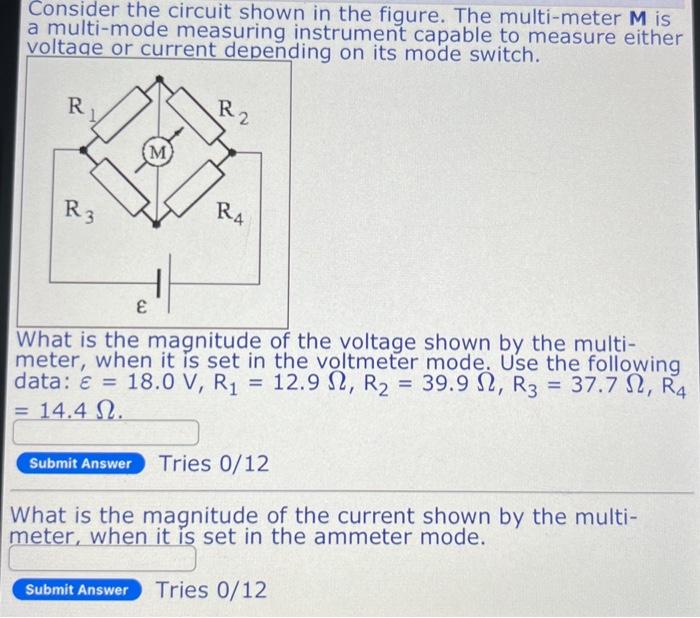

Consider the circuit shown in the figure. The multi-meter $M$ is a multi-mode measuring instrument capable to measure either voltaqe or current depending on its mode switch. What is the magnitude of the voltage shown by the multimeter, when it is set in the voltmeter mode. Use the following data: $ε = 18.0 V, R_{1} = 12.9Ω, R_{2} = 39.9Ω, R_{3} = 37.7Ω, R_{4}$ $= 14.4Ω$ Tries $0/12$ What is the magnitude of the current shown by the multimeter. when it is set in the ammeter mode. Tries $0/12$

Question

student submitted image, transcription available below

Consider the circuit shown in the figure. The multi-meter

M

is a multi-mode measuring instrument capable to measure either voltaqe or current depending on its mode switch. What is the magnitude of the voltage shown by the multimeter, when it is set in the voltmeter mode. Use the following data:

ε = 18.0 V, R_{1} = 12.9Ω, R_{2} = 39.9Ω, R_{3} = 37.7Ω, R_{4}

= 14.4Ω

Tries

0/12

What is the magnitude of the current shown by the multimeter. when it is set in the ammeter mode. Tries

0/12

Accepted Answer
