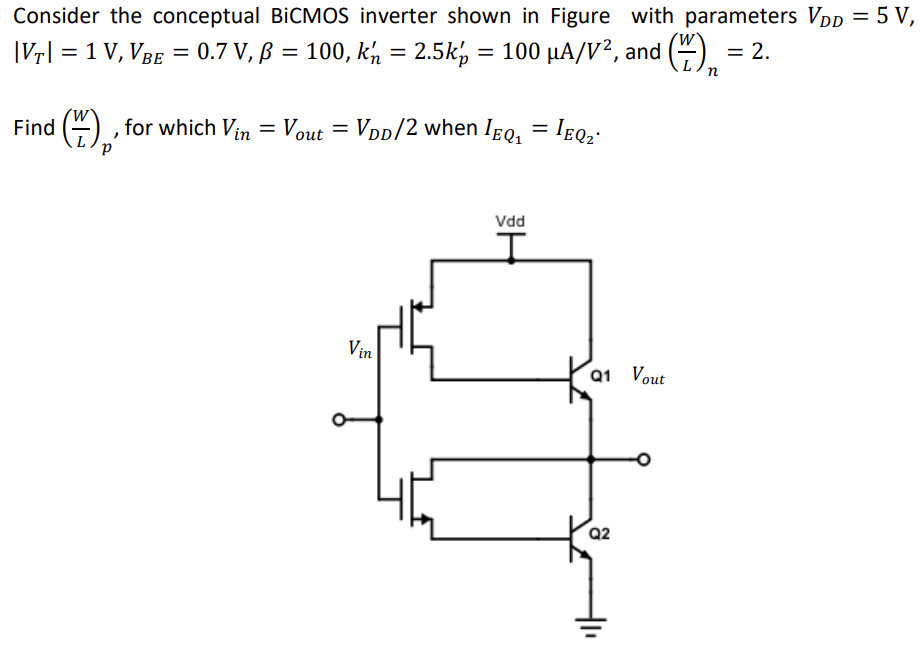

Consider the conceptual BiCMOS inverter shown in Figure with parameters
V_(DD)=5V
,
|V_(T)|=1V,V_(BE)=0.7V,\beta =100,k_(n)^(')=2.5k_(p)^(')=100\mu (A)/(V^(2))
, and
((W)/(L))_(n)=2
. Find
((W)/(L))_(p)
, for which
V_(in )=V_(out )=(V_(DD))/(2)
when
I_(EQ_(1))=I_(EQ_(2))
.

Question

Consider the conceptual BiCMOS inverter shown in Figure with parameters

V_(DD)=5V

,

|V_(T)|=1V,V_(BE)=0.7V,\beta =100,k_(n)^(')=2.5k_(p)^(')=100\mu (A)/(V^(2))

, and

((W)/(L))_(n)=2

. Find

((W)/(L))_(p)

, for which

V_(in )=V_(out )=(V_(DD))/(2)

when

I_(EQ_(1))=I_(EQ_(2))

.

Accepted Answer
