Construct a circuit, I dont know how to start . Thank you so much

Three \( 1.50-\mathrm{V} \) batteries and four \( 1.00-\Omega \) light bulbs are provided. A circuit consisting of wires with

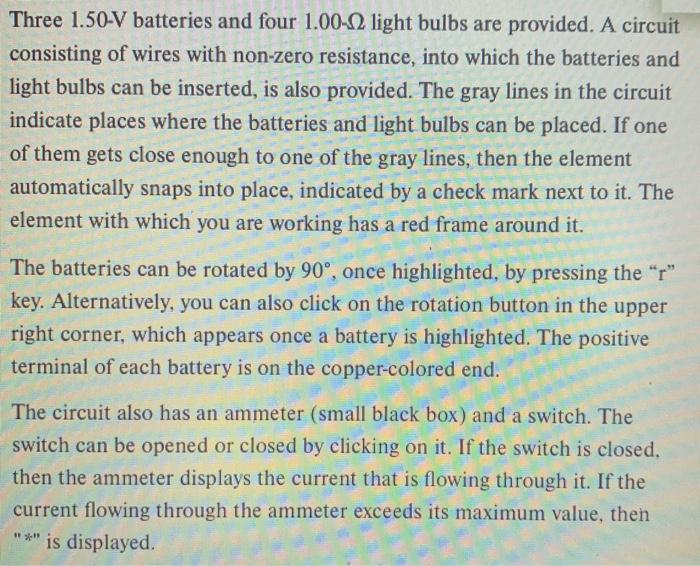

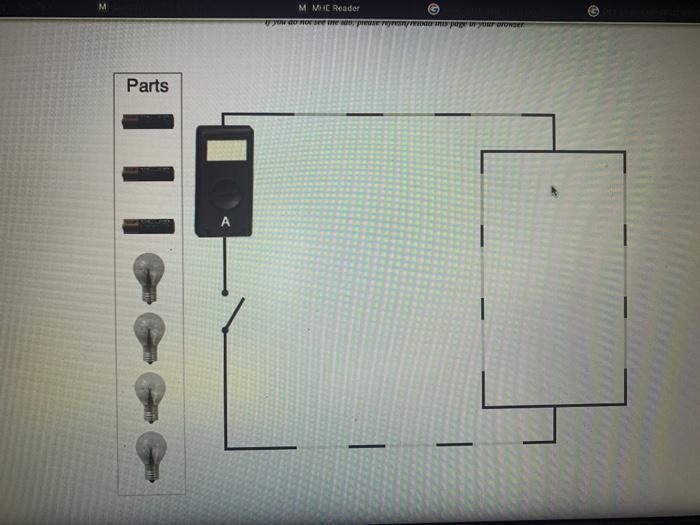

Three batteries and four light bulbs are provided. A circuit consisting of wires with non-zero resistance, into which the batteries and light bulbs can be inserted, is also provided. The gray lines in the circuit indicate places where the batteries and light bulbs can be placed. If one of them gets close enough to one of the gray lines, then the element automatically snaps into place, indicated by a check mark next to it. The element with which you are working has a red frame around it. The batteries can be rotated by , once highlighted, by pressing the " " key. Alternatively, you can also click on the rotation button in the upper right corner, which appears once a battery is highlighted. The positive terminal of each battery is on the copper-colored end. The circuit also has an ammeter (small black box) and a switch. The switch can be opened or closed by clicking on it. If the switch is closed, then the ammeter displays the current that is flowing through it. If the current flowing through the ammeter exceeds its maximum value, then is displayed.
