(Solved): Derive the Boolean expressions and construct the truth tables for the logic gate diagrams shown in ...

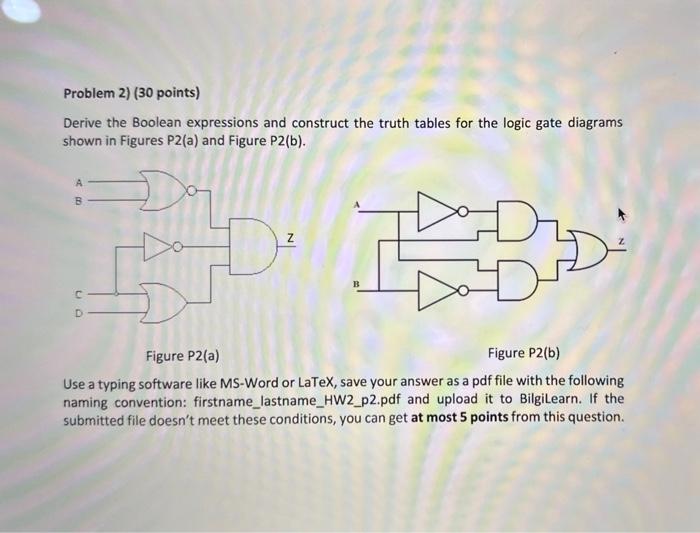

Derive the Boolean expressions and construct the truth tables for the logic gate diagrams shown in Figures P2(a) and Figure P2(b). Figure P2(a) Figure P2(b) Use a typing software like MS-Word or LaTeX, save your answer as a pdf file with the following naming convention: firstname_lastname_HW2_p2.pdf and upload it to BilgiLearn. If the submitted file doesn't meet these conditions, you can get at most 5 points from this question.
