(Solved): Design a counter to produce the following binary sequence. Use J-K flip-flops. \( 0,9,1,8,2,7,3,6, ...

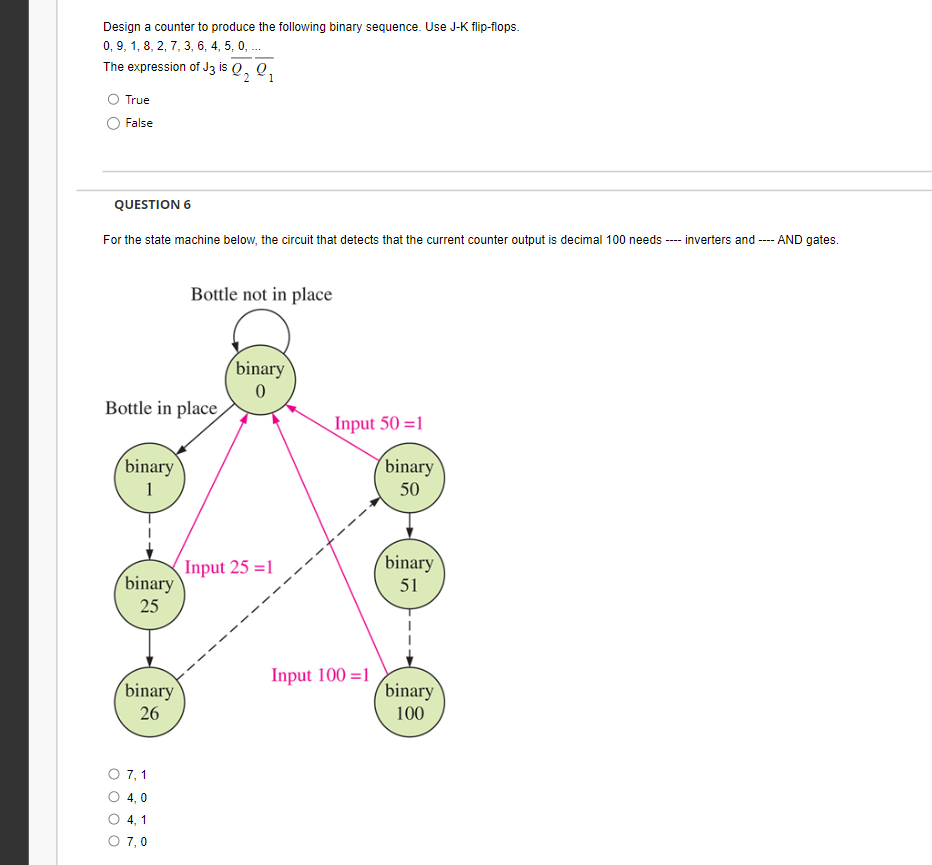

Design a counter to produce the following binary sequence. Use J-K flip-flops. \( 0,9,1,8,2,7,3,6,4,5,0, \ldots \) The expression of \( \mathrm{J}_{3} \) is \( \overline{Q_{2}} \overline{Q_{1}} \) True False QUESTION 6 For the state machine below, the circuit that detects that the current counter output is decimal 100 needs inverters and AND gates. 7,1 4,0
